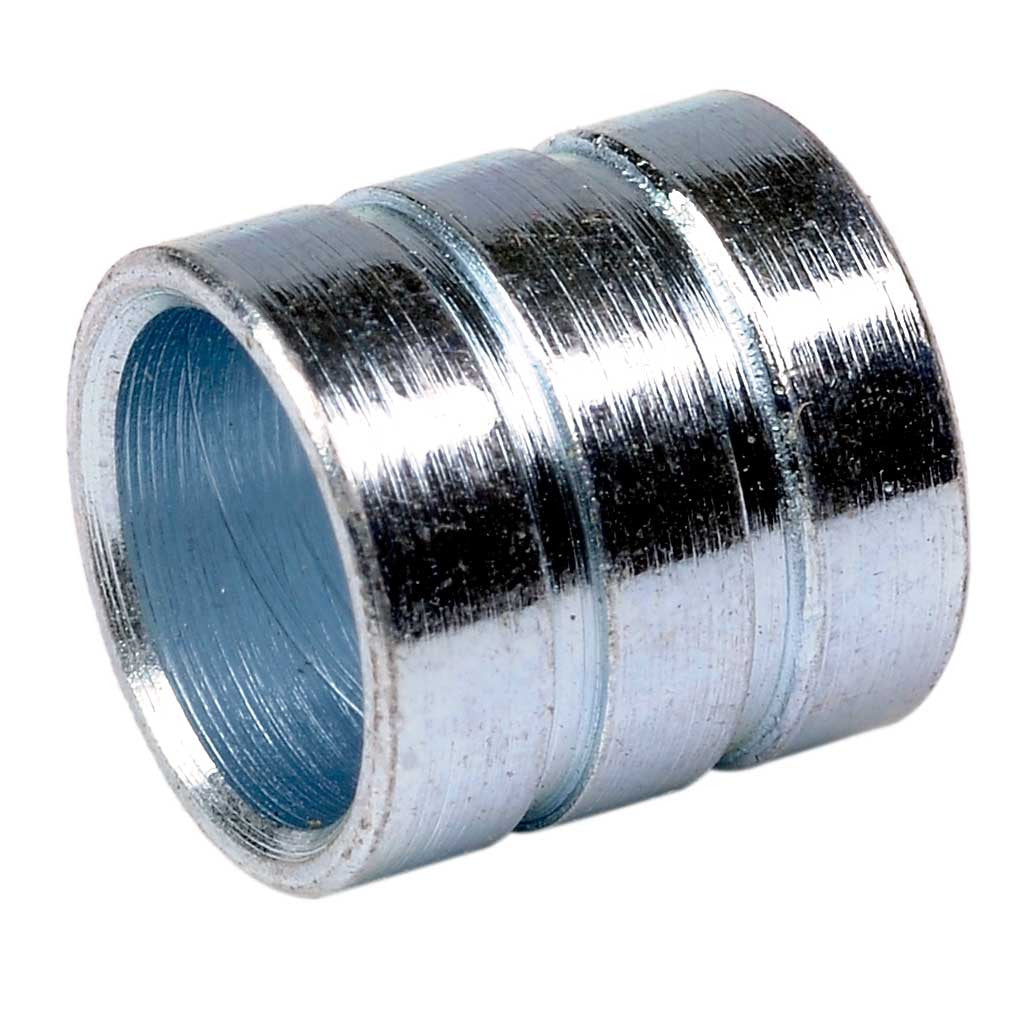

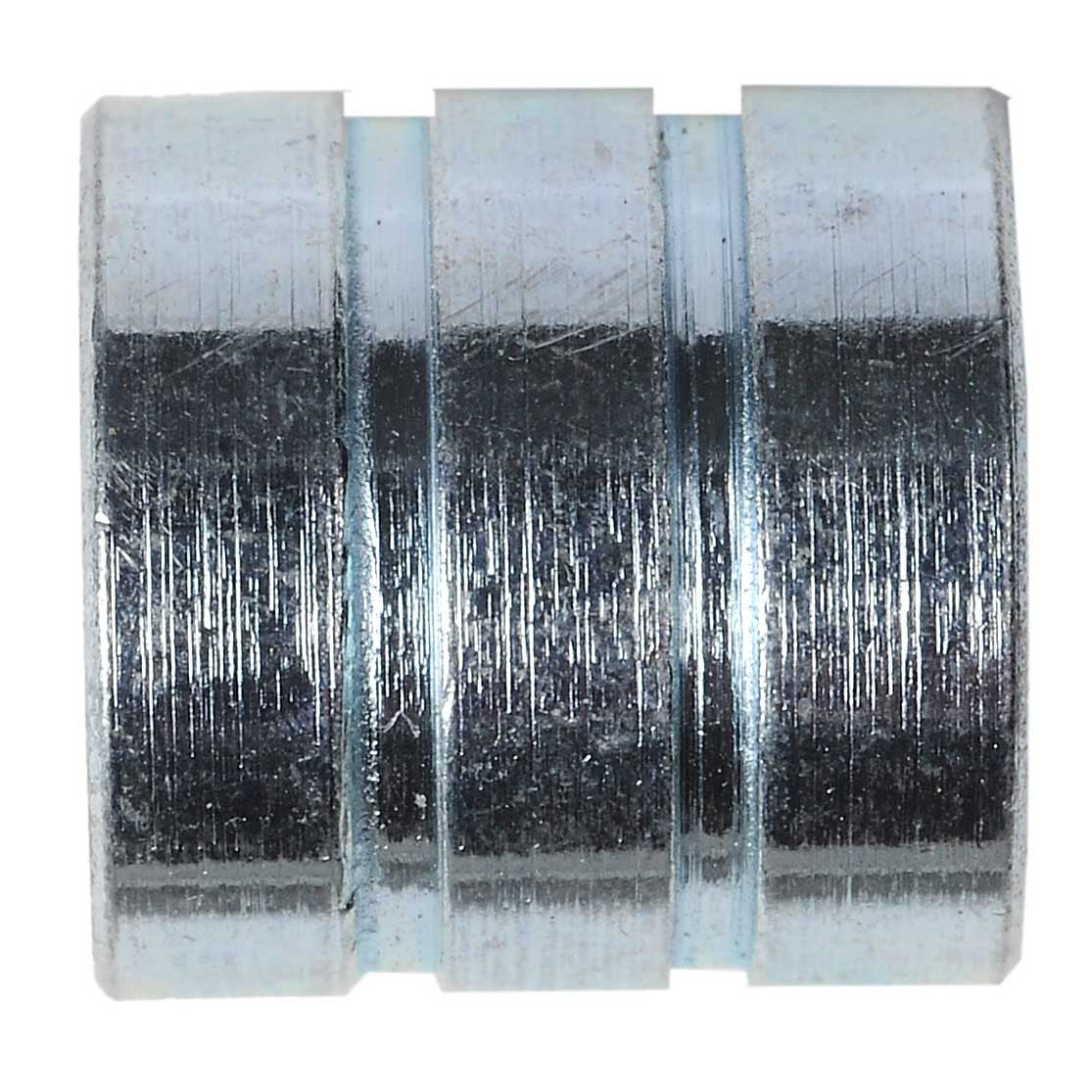

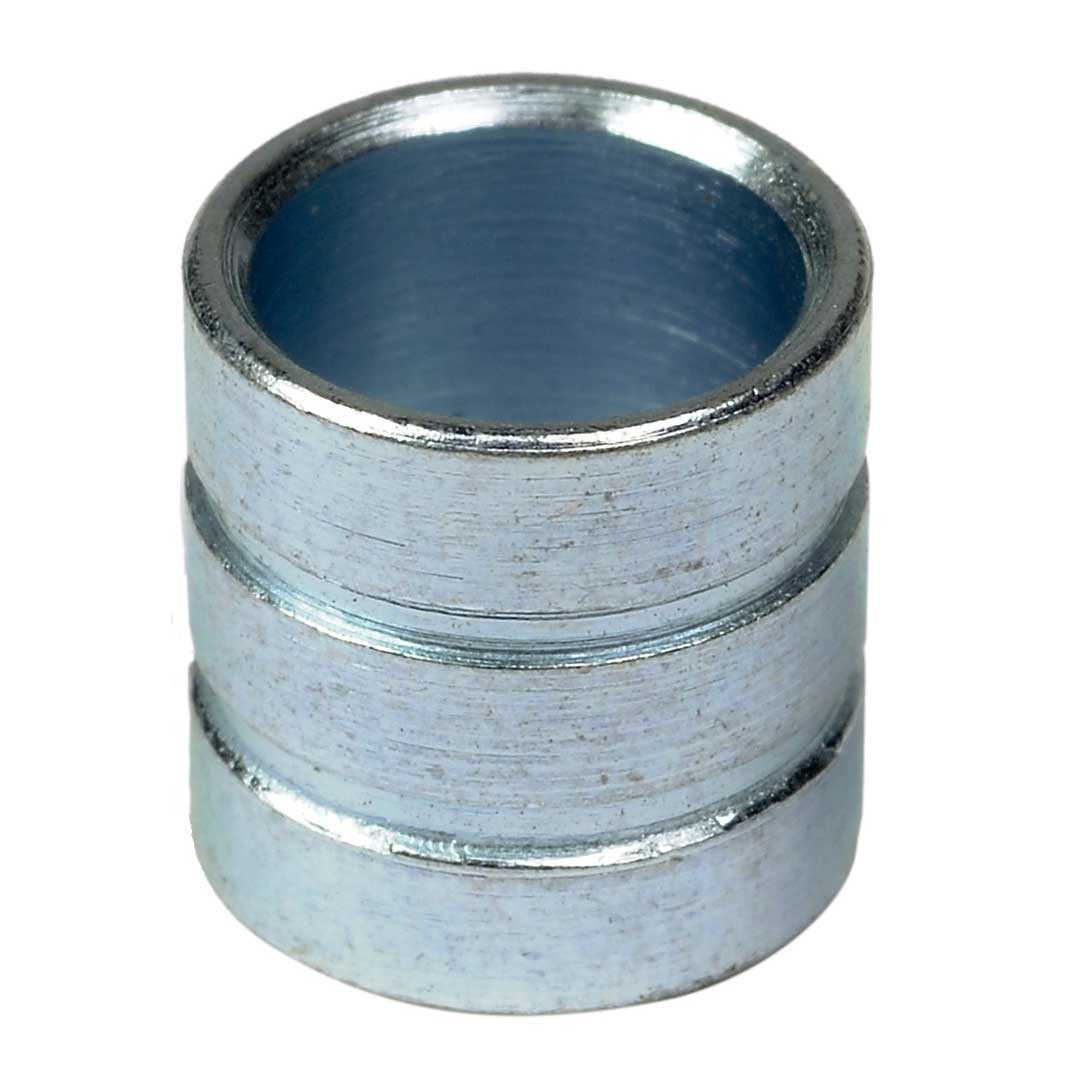

Screw Drive Connection Collar - 19806A04.S

Product Description
$2.99
Maximum quantity available reached.

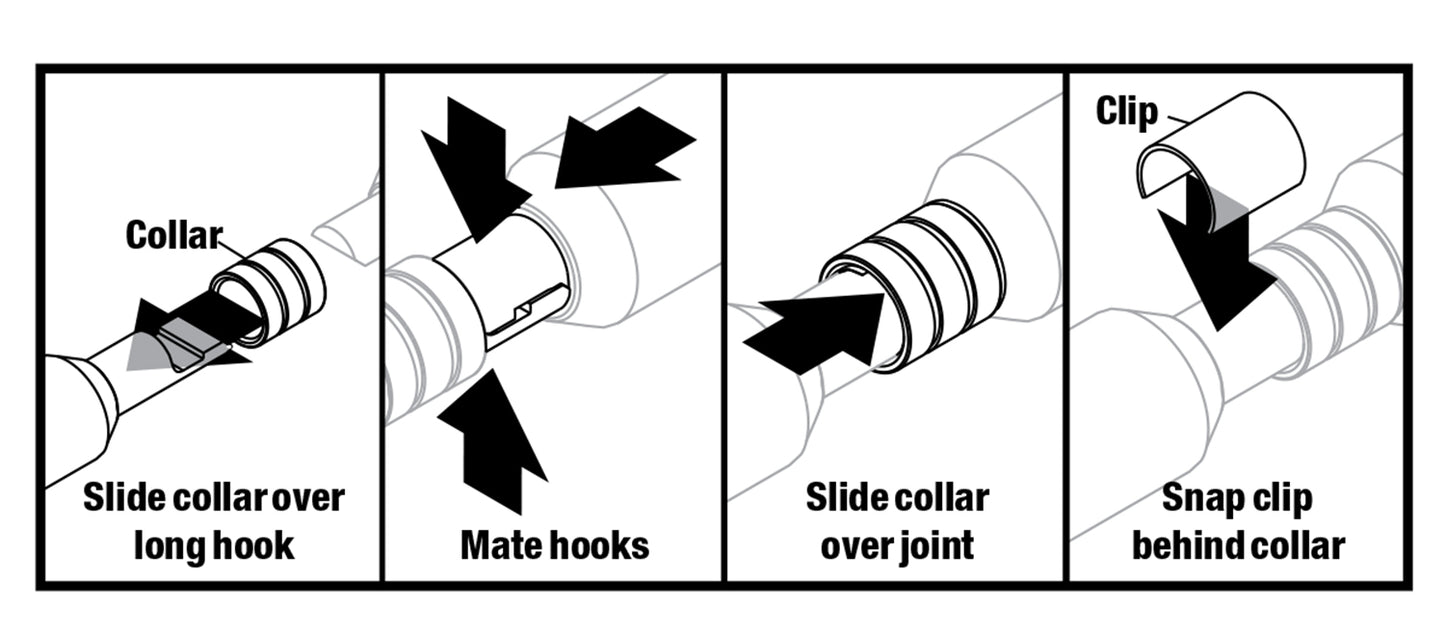

The replacement collar slides over the long hook before mating hooks and snapping the clip on at the screw drive connection point. This allows the 3 piece screw drive sections to stay together as the screw turns. Used with most Genie residential screw drive models ever made.

  •  The 19806A04.S is for the Collar part only and does not include the Clip. If you also need the Clip to go with the Collar, you will want to add part 19807A04.S to your order.
  • Compatible with Models:  1060, 1560, 2560, 3560, 3860, IS525, IS525/B, IS550, IS550/B, IS850, IS900, IS900/B, IS920, IMS1000, ISL950, ISL950/B, ISL980/B, ISL980, POWERMAX 4060L, GXL9500CL, GXL9550CL, GXL9900CL, GXL1000CL, H4000, H6000, G2500, G4050, G5000, G5050, G5500, G5700, G8000, GDR9000, GX9000, 2060L, 3060L, H8000, ISD990, ISD995, ISD1000, 4560, 2564, 2568, 3064, 4064, G4050CL, G5000CL, G5050CL, G5500CL, G5700CL, G8000CL, GX9000CL, 2562, 3062, 4062 , GXL9500, GXL9550, GXL10000.
  • Comes with 1 collar.
Sku: 19806A04.S

QUESTIONS & ANSWERS

Ask a Question
  • need drive screw coupler and screw drive connection collar for powerlift 900 model 2526

    The Genie Powerlift 900, model 2562 diagram can be found here: (click for the Powerlift 900 parts)
    It sounds like you are referring to the coupler, part 36645R.S, and the Clip and Collar. parts 19807A04.S and 19806A04.S.
    The illustration should help determine if that is correct.

  • Hi, I need 2 parts for my Genie Garage Door Opener (Model # ISL950/A). I have found them on you site, but they are for ISL950 or ISL950/B. Will they work with ISL950/A? the parts are: Screw Drive Connection Collar - 19806A04.S and Screw Drive Retaining Clip- 19807A04.S thanks Nasser

    This part will work for the ISL950/A as well.

  • Does this collar come with the c type retaking clip to hold this collar in place?

    No, that is separate as part number 19807A04.S.
