The Genie Company

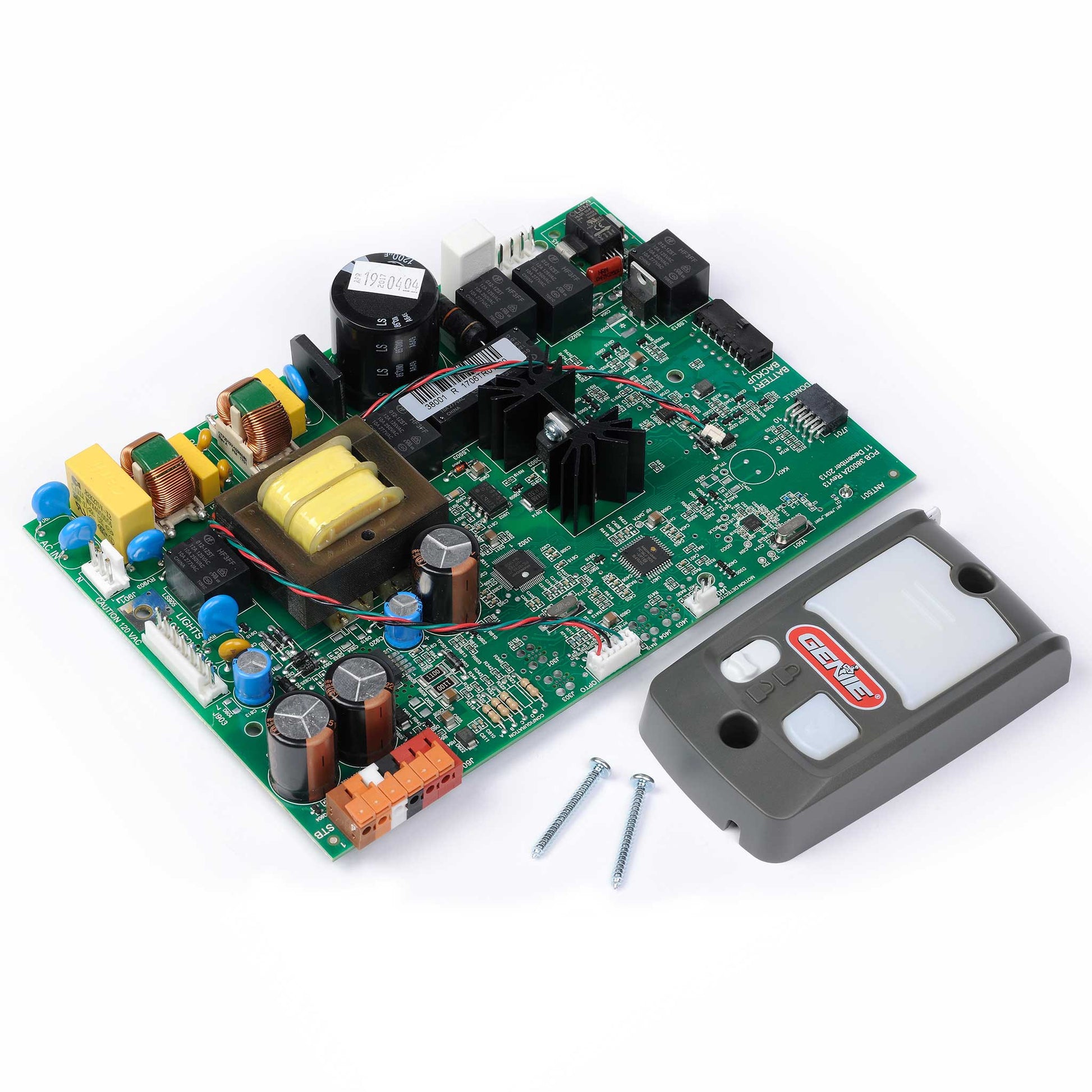

Circuit Board / Series II Wall Console Bundle 38875R3.S

Circuit Board / Series II Wall Console Bundle 38875R3.S

Regular price $125.99 USD
Regular price Sale price $125.99 USD
Sale Sold out

This Genie bundle includes the replacement circuit board and a Series II wall console (38875R3.S). The DIY replacement circuit board with wall console bundle is for compatible Genie chain and belt drive model garage door openers. The series II wall console is needed if you are changing from a Series III circuit board. If you are unsure, this bundle will guarantee you have all you need to replace the circuit board to get your garage door opener back up and running quickly!

  • Compatible with models 3022, 3024, 3042 (ChainMax 1000, SilentMax 1000, IntelliG 1000)
  • Replaces old circuit board numbers - 38334R3.S, 38001R3.S
  • Genuine Genie replacement parts
  • Requires re-programming of limits and accessories with the new board
  • All remotes, keypads or wireless devices that you currently use will work with the new circuit board (after reprogramming)
  • Bundle Kit includes the DIY detailed replacement instructions, circuit board, and series II wall console
  • If you had a Series III wall console (Gray with black buttons), when installing the new circuit board you will need to replace the old wall console with this new Series II wall console

SKU: 38875R3.S

In Stock! Usually ships within 24 hours.

ASK A QUESTION View full details

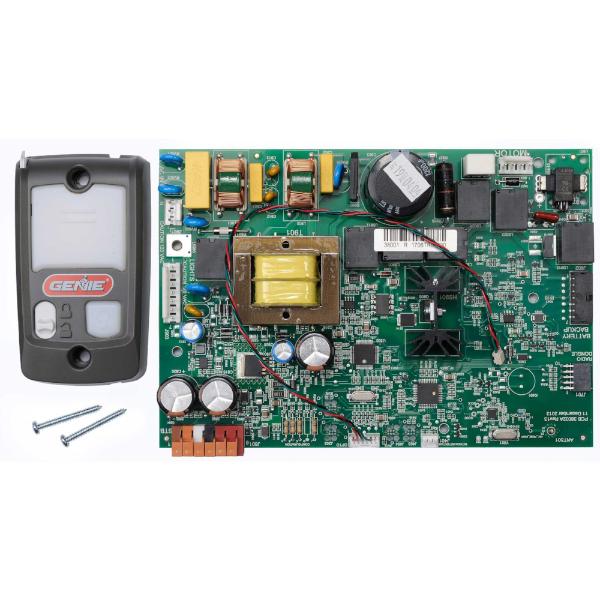

Genie garage door opener Circuit Board with Series II Wall Console Bundle 38875R3.S
Circuit Board / Series II Wall Console Bundle 38875R3.S


Ask a Question
  • Need circuit board for 3020 pro Genie. Is it available. 38716S 089195A764.

    You will need Circuit board Assembly 39340S.S for Genie model 3020.

  • Will this circuitboard work on model number 3024?

    Yes, the Circuit Board / Series II Wall Console Bundle 38875R3.S is compatible with model 3024.

  • My model circuit board is 37470 R 1912AY01240. I would like to know if my actual remote can be compatible with this circuit board.

    Yes your old remotes for circuit board 37470R will work with the new circuit board 38875R3.S.

  • Does the circuit board work with a Genie wireless keypad?

    Yes, the Circuit Board / Series II Wall Console Bundle 38875R3.S is compatible with Wireless Keyless Entry Keypad GK-R .

  • Will the older GICTD remote work with this board?

    Yes, it will.

  • Hi, My garage door opener SilentMax 1000 by Genie Model number 3042. Circuit board number 37469A Rev 01. Due to power outage, my garage door is dead. We believe the circuit board is down. Could you please inform me how I can purchase the circuit board and how to install it. I live in Canada Ontario. Your reply is greatly appreciated.

    You can purchase it online here and the installation instructions will come with it as well.

  • can not find 37469a rev 01 circuit board for my genie garage door opener

    What model is your garage door opener?

  • I replaced my broken 37469A REV01 board with the recommended 38875R3.S . Now I can not get my ARQ Universal Control garage door opener to function. Tried original instructions and updated instructions and also updated ARQ software. How can I remedy this problem?

    The ARQ universal remote is made by Chamberlain. You would want to contact the Chamberlain company regarding any issues with programming this remote. We do not have the information on how to program them.

  • do replacement circuit boards have a warranty?

    Yes, they would have a one year warranty.

  • Does this work with Genie Silent Max 1000 model 3042?

    Yes, it does!

  • Does this come with instructions how to remove and replace the board??? I opened teh cover but it looks like I have to get on a ladder and unscrew the actual unit inder the cover near the bulbs.... PLEASE email me instructions if not.... thx!

    This does come with instructions on how to change the board. If you need assistance you can also contact our customer service at 1-800-354-3643 and we can walk you through the steps.

  • Does G3T remote work with this circuit board ?

    Yes, it does.

  • I need a board for genie opener model# 4062-TNMSO. Will this one work or what numbers should I be looking for? It is a screw driven Mach machine. Thanks

    No, this board kit will not work.
    You would need this board kit:

PDF Instructions for replacing the 38875R3.S circuit board

PDF Instructions for resetting the travel Limits after replacing the circuit board

PDF Instructions for replacing the Series II wall console

38875R3.S DC Control Board Replacement

These instructions are written assuming that you will have ample room around Opener to perform this repair. Some rare instances will require removal of the unit from its mounting hardware and repair made on a bench or floor. Refer to your Owner’s Manual for proper assembly and carefully read and understand all warnings and cautions pertaining to your unit.





1. Pull emergency release cord on carriage to disengage opener to close door if necessary. (If unable to lower door using opener, use extreme caution manually closing door. Before pulling emergency release cord, make certain people and objects are clear of door opening.)

2. Unplug the garage door opener power cord from the power outlet.

3. Open the garage door opener lens cover by inward on the middle tab. Once the lens cover is open remove light bulbs. Shown in FIG. 1.

Circuit Board Replacement 38875R3.S figure 1

4. Remove the wall console and Safe-T-Beam wires from the terminal block that is located on side of garage door opener power head. Shown in FIG. 1. Use small common screwdriver to press in on the orange tabs while gently pulling the wall console and safety beam wires from the terminal block. Mark these wires when removing to help facilitate replacement.

5. Unplug any optional accessories that are installed such as the garage door opener battery backup and/or the networking adapter.

6. Remove two 5/16” screws securing powerhead cover to chassis. FIG. 2.

Genie Circuit board replacement figure 2

7. Allow the motor cover to swing down to access control board and wire harnesses.

8. Unplug the following harnesses from the control board. FIG. 4.

• Light harness

• Motor harness

• Opto harness (see step 12-13)

• AC IN harness

• Motion Detector harness (if equipped)

• Green ground wire to chassis (if equipped).


Genie Circuit board replacement figure 3 Genie Circuit board replacement figure 4

9. Powerhead cover can now be removed from opener chassis for repair. Special care should be taken to prevent damage to motion detector bulb located on the bottom of motor cover. (If equipped).

10. Remove control board mounting screws and the old circuit board. Shown in FIG 3.

11. Feed the antenna wire through the hole in the cover. Mount the replacement 38875R3.S circuit board to cover and secure with old screws removed in step 10.


12. If your motor compares to MOTOR TYPE 1. Remove existing harness from motor and plug pre-installed OPTO SENSOR harness from new control board directly into motor.

13. If your motor compares to MOTOR TYPE 2. Remove pre-installed OPTO SENSOR harness from control board and plug existing OPTO harness from motor into DUAL ENCODER OPTO SENSOR plug on replacement control board. (Or use new harness packed with control board).

14. Hang powerhead cover to chassis to connect all other harnesses removed in step 8.

15. Swing powerhead cover up onto chassis and secure using screws removed in step 6.

16. Install wall control and Safe-T-Beam wires. Install battery backup and/or network harnesses if applicable.

17. Install light bulbs and close lens cover.

18. Reapply power to opener.

19. Limit controls, transmitters and full function test will be required. Refer to the owner’s manual and/or assembly poster for detailed information

20. See below to replace the wall console

Genie motor type images for replacement circuit boards


• Disconnect power to the powerhead.

• Remove existing wall console from the wall by removing mounting screws.• Remove wires from existing wall console.

• Split and strip ends of the wire if it is needed (Fig. 2).

• Fasten the wire to control board screws on the back of the wall console (Fig. 3):




• Connect white wire between powerhead terminal #3 to wall console terminal “W.” (Fig 3 & 7).

• Connect striped wire between powerhead terminal #4 to wall console terminal “B.” (Fig 3 & 7).

NOTE: When existing wires have a color code different from above (FIG. 3), or none at all—make sure the wires are connected between terminals as directed above. When the wires are connected to the opposite terminals, the Sure-Lock® and Light feature may not function. The first indication of incorrect wiring is the backlight will be OFF.

• Mount wall console to wall using screws provided. Verify height at least 5 ft. above the floor (Fig. 4).

Reconnect power to the powerhead.

• Check operation of each wall console button and feature (If the circuit board was replaced, and then the wall console, reset the limits on the garage door opener before checking the wall console features.)
