The Genie Company

Light Socket - 39719A.S

Light Socket - 39719A.S

Regular price $13.99 USD
Regular price Sale price $13.99 USD
Sale Sold out

Genie garage door opener replacement light bulb socket with plug for L-models listed below, for both chain and belt drive.

  • Compatible models: 3120HL-B, 3155L, 3155LD, 7053L, 7155L
  • Kit includes: the light socket and harness assembly
  • Genuine Genie replacement part

SKU: 39719A.S

In Stock! Usually ships within 24 hours.

ASK A QUESTION View full details

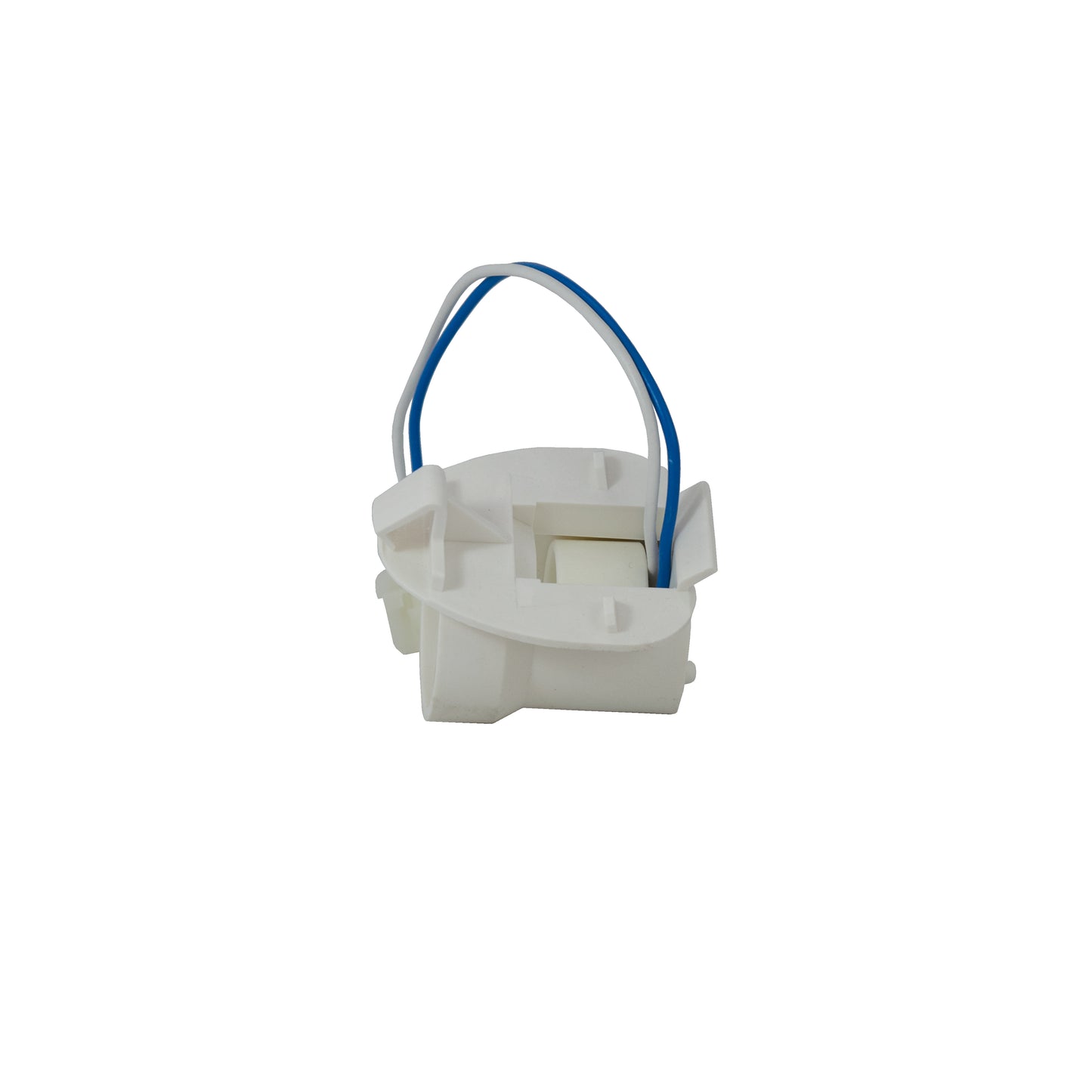

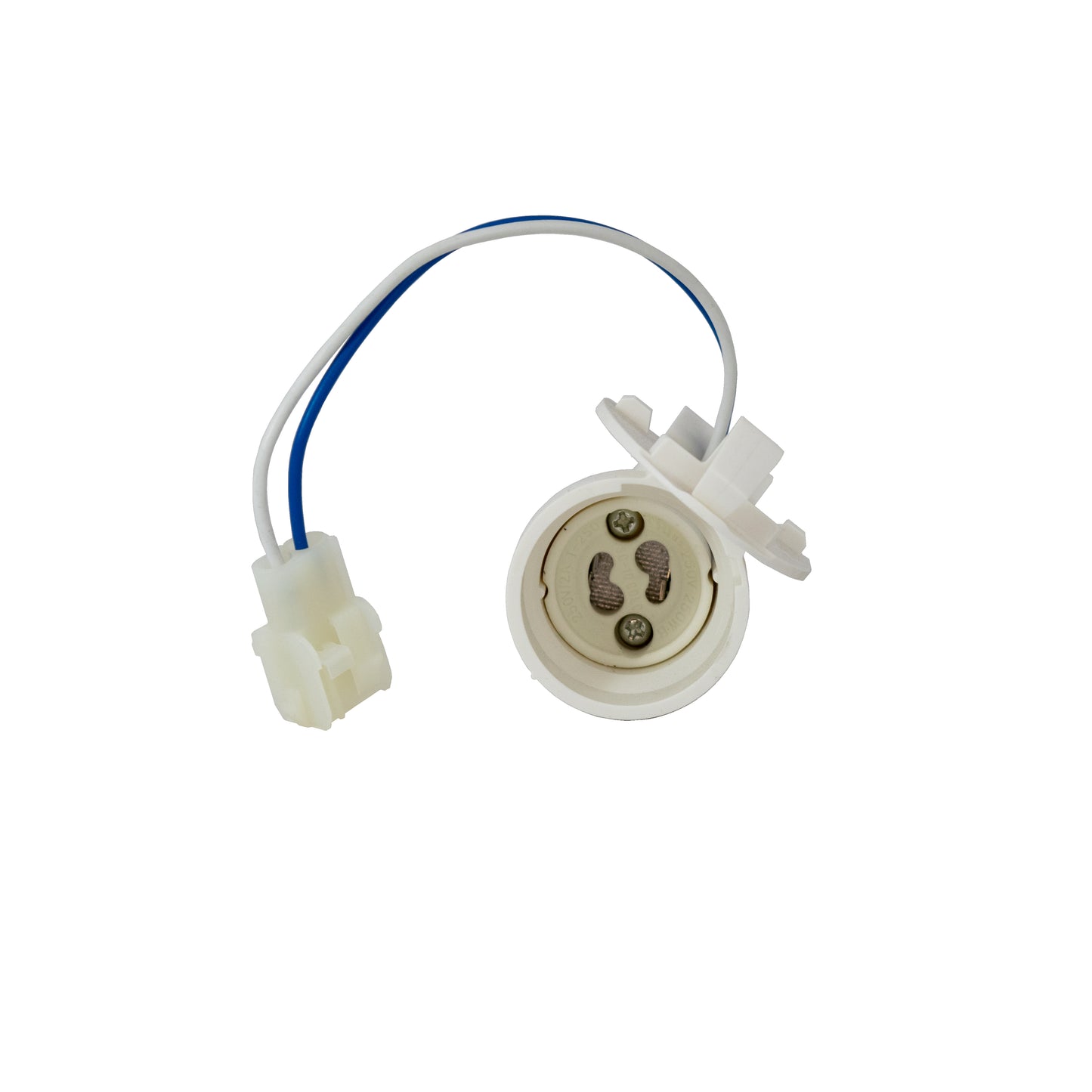

39719A.S - Replacement Light Socket for Genie garage door opener
Light Socket - 39719A.S
$13.99

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

LED Bulb & Socket Replacement For Chain & Belt Operators

Replacing LED Light bulb part 39178A.S or Light Socket 39179A.S

Download PDF instructions here

These instructions are written assuming that you will have ample room around Opener to perform this repair. Some rare instances will require removal of the unit from it’s mounting hardware and repair made on a bench or floor. Refer to your Owners Manual or Installation Poster for proper assembly and carefully read and understand all warnings and cautions pertaining to your unit.

Tools required: Standard common screwdriver and/or 5/16” nutdriver.

NOTE: Rail not shown, rail removal is NOT necessary for this repair.
CLOSE DOOR PRIOR TO REPAIR.

  1. Remove power from operator.
  2. Unplug battery Backup (BBU) from top of opener head (if applicable).
  3. Press down on upper tabs to remove lens.
  4. Turn LED bulb as shown 1/4 turn to remove LED light bulb. Replace if needed by inserting pins into socket and rotating bulb 1/4 turn counter clockwise until it locks in place. FIG-1 & 2
Figure 1 and 2
IF REPLACING LED LIGHT SOCKET(S):
  1. Remove LED bulbs as shown above.
  2. Using a 5/16” nut driver or common screw driver, remove the 2 opener cover screws and remove opener cover. FIG-3
  3. Note the location/position and disconnect light socket harness adapter from main control board. FIG-4
  4. Unplug harness adapter from LED light socket harnesses (2). FIG-5
  5. Press in on tab and push LED light socket out of chassis. FIG-6/7
  6. Install LED light socket(s) from outside of chassis in. Snap into place. FIG-7
  7. Install LED light socket harnesses into adapter. FIG-5
  8. Plug adapter into main control board reverse of step 7. (See connector detail below).
  9. Install cover, LED bulbs, and lens cover in reverse order.
  10. Reapply power to operator. Plug battery backup (BBU) into top of opener (if applicable)
  11. Test opener.
