39045R.S - Motor Assembly Installation Instructions

39045R.S AC Screw Drive Motor Replacement Instructions

PDF Printable Version instructions for replacing the screw drive motor 39045R.S

This repair will require removal of the unit from it’s mounting hardware and repairs made on a bench or floor. Refer to your Owners Manual and/or Installation Poster for proper assembly and carefully read and understand all warnings and cautions pertaining to your unit.

WARNING
BE SURE ELECTRICAL POWER HAS BEEN DISCONNECTED FROM THE INPUT POWER LINES PRIOR TO REMOVING THE MOTOR COVER.

WARNING
ANY AND ALL REPAIRS MADE TO THIS UNIT MUST BE PERFORMED WITH THE DOOR DISCONNECTED FROM THE OPENER AND IN THE CLOSED POSITION.

1. Pull emergency release cord on carriage to disengage opener to close door if necessary. (If unable to lower door using opener, use extreme caution manually closing door. Before pulling emergency release cord, make certain people and objects are clear of door opening.)

2. Unplug the garage door opener power cord from power receptacle.

3. Open lens cover by pressing middle tab inward to swing down and remove light bulbs. Fig. 1.

lowering the lens cover on a Genie screw drive garage door opener



4. Remove wall control and Safe-T-Beam wires from terminal block located on side of opener fig. 1. Use small common screwdriver to press in on orange tabs while gently pulling wires from block. Mark wires to help facilitate replacement.

5. Remove network and battery backup harnesses from front of opener (if applicable).

6. Remove the cotter pin & clevis from door arm to separate door from opener. Fig. 2.

Genie screw drive garage door opener separating the door arm

7. Remove motorhead and rail assembly from mounting brackets/hardware and set on a clean work surface or floor.

Note: Be aware of the motion detector bulb on bottom of powerhead cover (if equipped). Do not set operator weight on this bulb.

8. Remove the 6-7/16” self tapping bolts from the rail/motor mounting straps and pull rail from motor head. Fig.3. Set rail assembly aside.

removing the self tapping bolts on a Genie screw drive model garage door opener

9. Remove two 5/16” screws securing powerhead cover to chassis and swing open to expose control board. Fig. 4.
NOTE: Do not remove control board from cover, shown for clarity only.

Instructions for replacing the motor 39045R.S on a Genie screw drive garage door opener

10. Remove grounding wires (green) from chassis. FIG. 6B.

11. Unplug these harnesses from control board. FIG. 5.
• Motor harness
• Opto Sensor harness
• AC in harness

replacing Genie screw drive motor 39045R.S

39045R.S Genie AC screw drive replacement motor installation instructions

12. Powerhead cover can now be removed from opener chassis.

13. Remove yellow and orange motor wires to start capacitor FIG. 6A

14. Remove three motor mounting bolts from motor frame FIG. 6C. Remove motor assembly.

15. Installing replacment motor and opto harness. Reference figure 6 & 7.
• Apply supplied lubricant to Opto Wheel shaft and install Opto Wheel. FIG. 6.
• If you are replacing a single encoder motor and have the original single encoder (4-prong) circuit board, remove opto harness from old motor and plug into the dual encoder motor as shown in FIG. 7A.
• If you are replacing a dual encoder motor and have a dual encoder circuit board (6-prong) use opto harness included with the new motor. See FIG. 7B.

Single encoder circuit board with dual encoder motor replacment 39045R.S

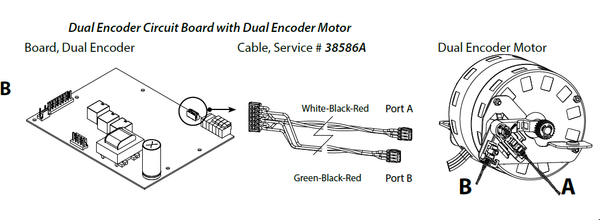

dual encoder circuit board with dual encoder motor Genie screw drive garage door opener



Note: Be certain to install all harnesses in the correct position being sure to install with locking tabs facing each other. (Detailed in FIG. 5)

16. Hang powerhead cover to chassis to install harnesses.

17. Install yellow and orange wires onto start capacitor.

18. Install ground wires onto chassis.

19. Swing powerhead cover up and install to chassis using 2- 5/16” screws.

20. Install rail to motor head assembly using coupler, mounting flange and 6-7/16” self tapping screws.

21. Reinstall opener assembly in reverse order as removed. Reference your owners manual and installation poster.

22. Install wall control and Safe-T-Beam wires. Install battery backup and/or network harnesses if applicable.

23. Install light bulbs and close lens cover.

24. Plug opener into receptacle.

25. Clear and reprogram limit controls per owners manual.

For Technical Assistance Contact Customer Service at 1-800-354-3643
