Battery BackUp Hardware - 39367A.S
Battery BackUp Hardware - 39367A.S
Couldn't load pickup availability

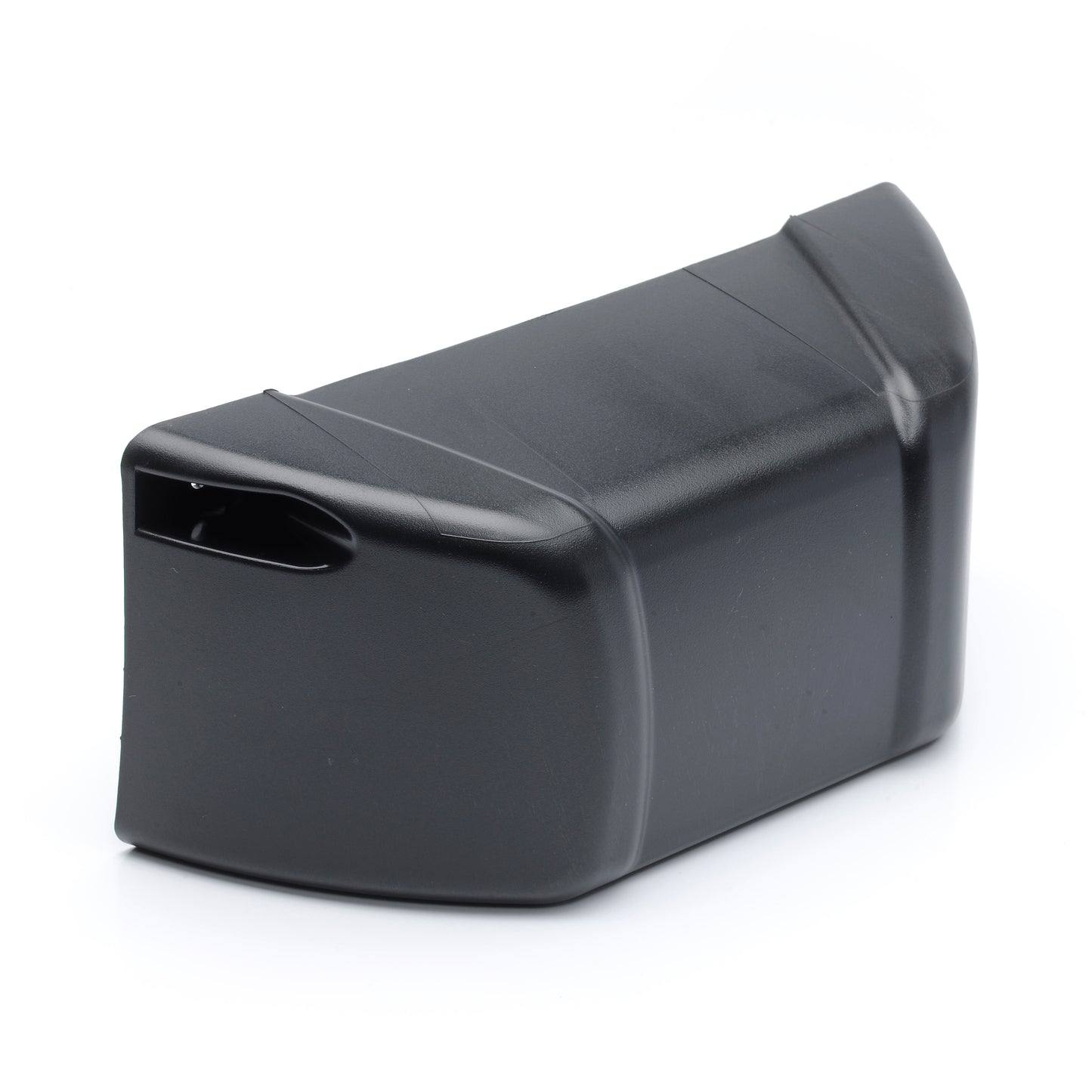

Battery back-up hardware only for models 3020H and 3020H-B that had a battery back-up installed on them.
- Contains battery cover and screws
- Does not contain the replacement battery- that is sold separately as part number 111658.0002.S
- Genuine Genie replacement part
SKU: 39367A.S
In Stock! Usually ships within 24 hours.
ASK A QUESTION View full details
QUESTIONS & ANSWERS
Ask a Question-
I have a model # 3155D-TSV garage door opener. Is it possible to add a battery backup to this opener? Thanks, George
No, it is not possible to add a battery backup to the Genie model 3155.
-
Does this include the battery bracket and connecting wire?
Yes, it does.
39367A.S Battery Backup Cover Replacement
WARNING
BE SURE ELECTRICAL POWER HAS BEEN DISCONNECTED FROM THE INPUT POWER LINES PRIOR TO REMOVING THE MOTOR COVER.
WARNING
ANY AND ALL REPAIRS MADE TO THIS UNIT MUST BE PERFORMED WITH THE DOOR DISCONNECTED FROM THE OPENER AND IN THE CLOSED POSITION.
Proper care should be used when handling a battery. Eye protection should be worn.
NOTE DO NOT reverse polarity (+) and (-) as this will damage the powerhead.
1. Close the garage door.
2. Unplug powerhead from the power source.
3. Unplug the battery backup from the harness connection. Fig. 1.
4. Remove both mounting screws from the rear of battery backup. Fig. 1.
5. Detach battery backup from the back of opener by tilting the BBU approximately 45 degrees and lifting up towards the ceiling. Fig. 1.
6. Remove 4 screws from battery hold down bracket. Fig. 2.
7. Install the battery hold down the bracket onto the 39367A.S replacement cover.
8. Install the battery backup assembly onto the operator in reverse order.
-
