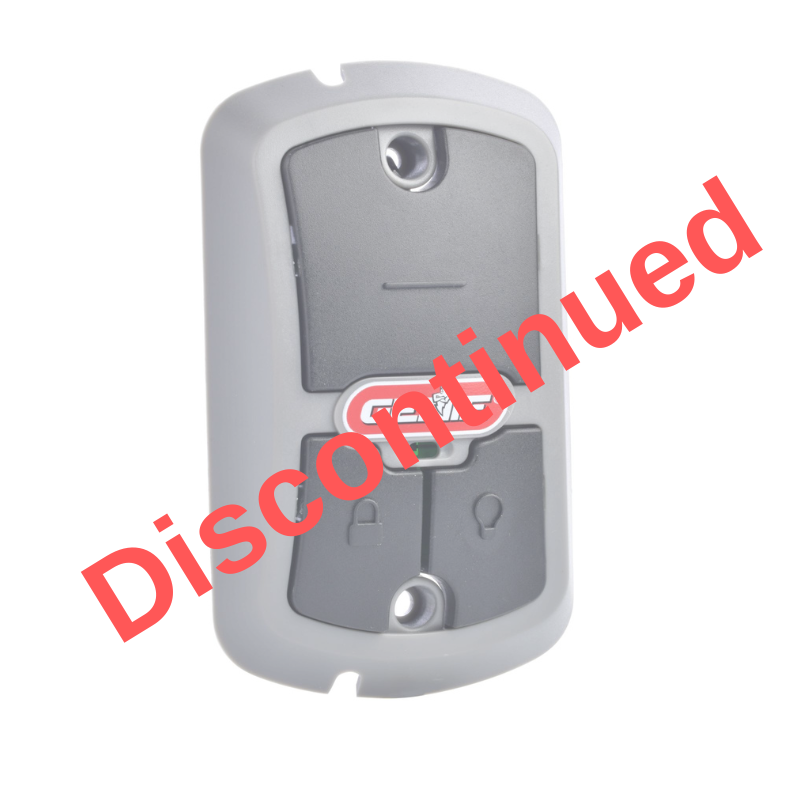

Wall Console for Series III Product

Product Description
$26.99
Maximum quantity available reached.

Multi-function wired wall console with open/close, light and vacation lock buttons. There is a red led light in the wall console that lights up to help locate the wall console in the dark.

  • ONLY compatible with Models 3022, 3024, 3042, 4022, 4024 & 4042 that have a serial number LOWER than the number 122494110518

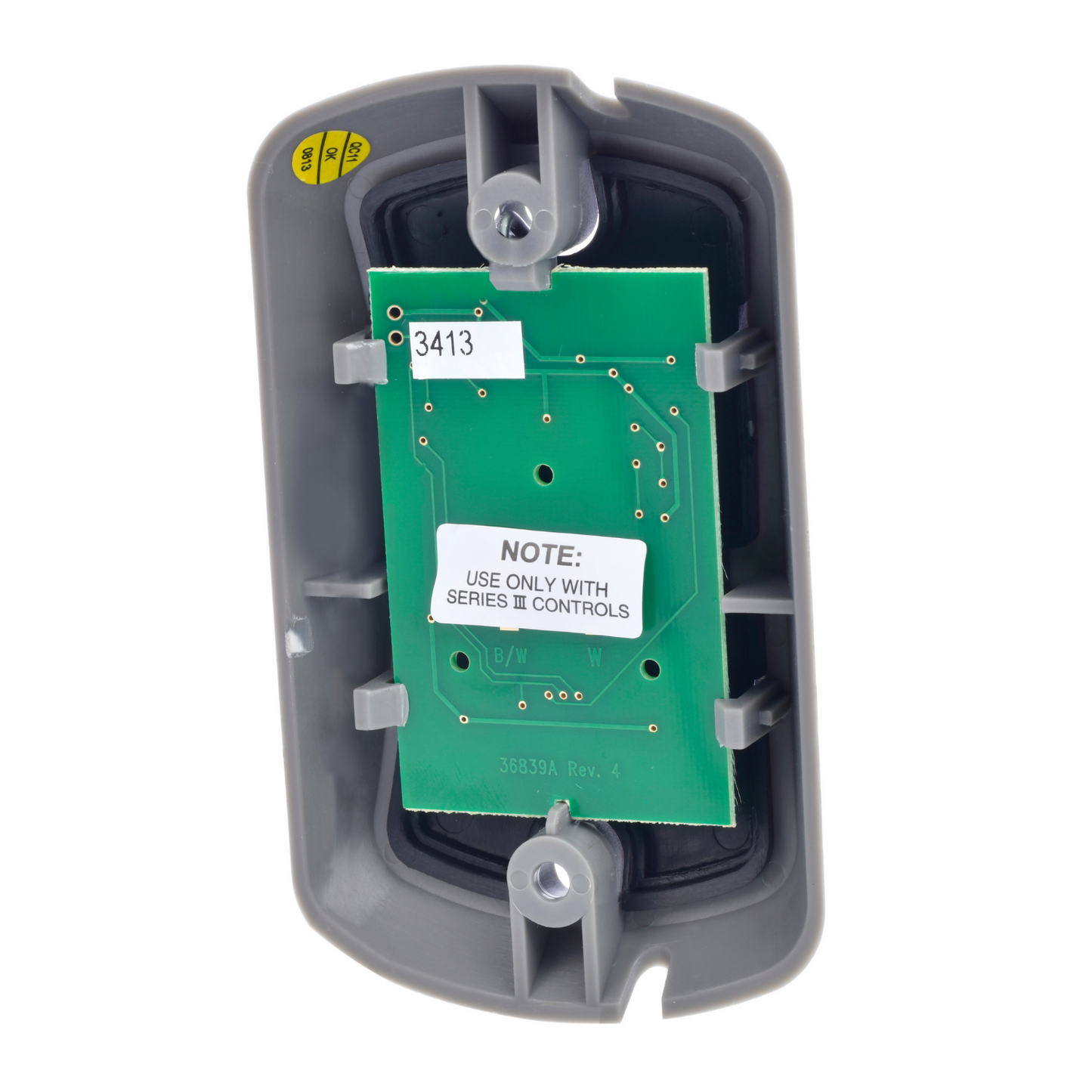

  • Circuit board inside the operator must start with the '37470R' prefix
  • Use this Series III wall console to directly add to or replace another Series III wall console of the exact same design and coloring



 California Residents: Proposition 65 WARNING

Sku: 37222R

 PDF Series III Wall Console Installation Instructions

Series III Replacement Wall Console, 37222R Installation

1. IMPORTANT INFORMATION

Use only the Series III wall console with Genie® garage door
openers models 2562, 2564, 3022, 3024, 3042, 3062, 3064, 4022,
4024, 4042, 4062, and 4064 that were from 2010 through 2012 with Series III electronics. The serial number will be lower than 122494110518.  If you currently have a series III wall console and have not replaced the circuit board, this will work. If you are unsure, please contact Genie customer service at 1-800-354-3643.

SERIES III WALL CONSOLE - OPERATION AND FEATURES

Wall console has three buttons and one indicator light.

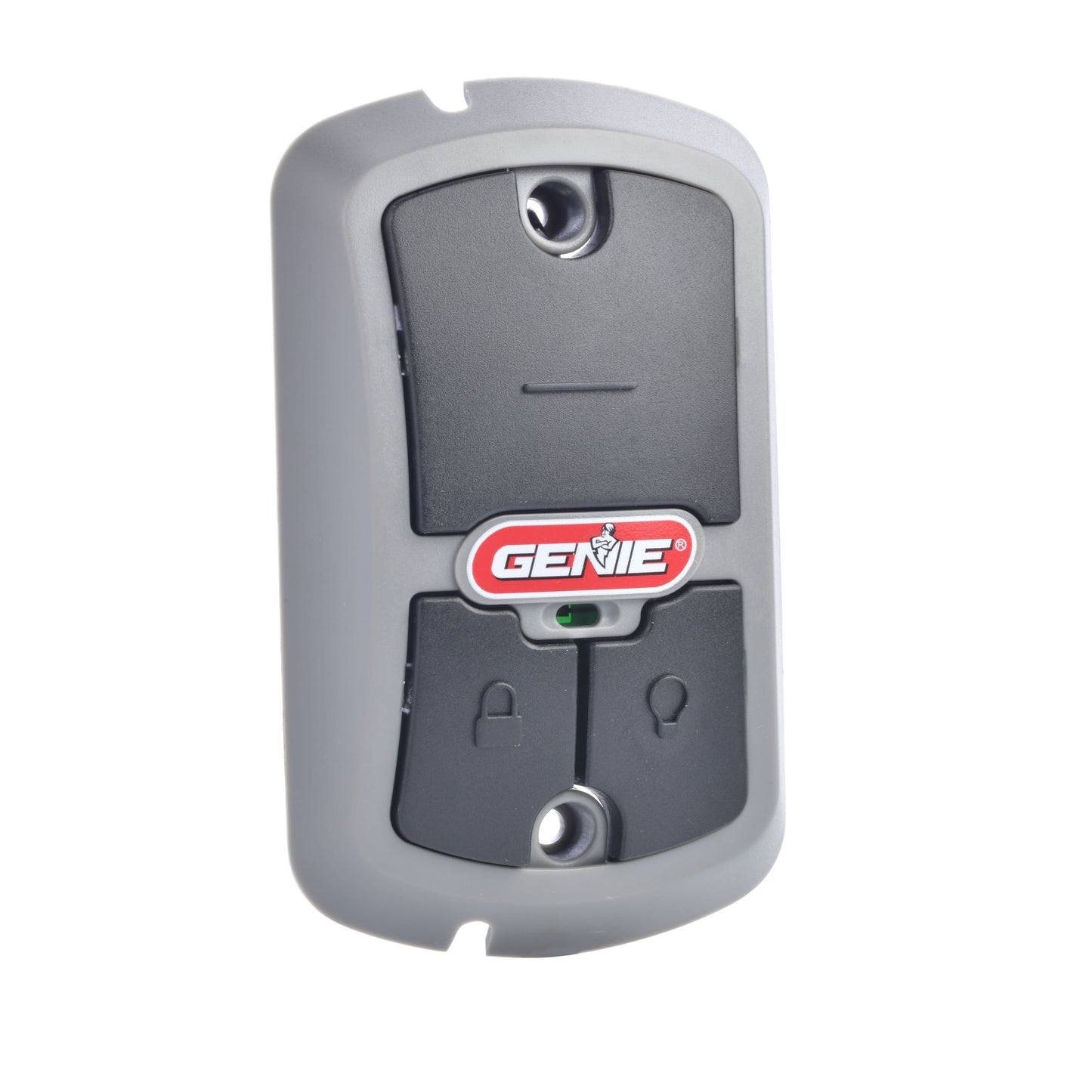

Genie Series III Wall Console 37222R

Indicator Light
Indicator light will display red when wall console is properly wired and Sure-Lock™ is OFF. When Sure-Lock™ is ON indicator light flashes.

Open/Close Button
Use this button to open or close garage door. When Sure- Lock™ is ON the Open/Close button will CLOSE door only. Note: Constant button pressure in the CLOSE mode will override error responses in the powerhead and close door.

Independent Light Console Button
Use this button to turn powerhead lights ON. Powerhead lighting will remain ON until this button is pressed again or a door action has been completed. Note: If opener has a Motion Detector, the sensor will keep powerhead lights ON as long as motion is detected.

Sure-Lock™ Button
When Sure-Lock™ is ON the powerhead cannot be activated by the wall console or a remote.
• Press and hold for 5 seconds (or until Indicator Light flashes) to activate Sure-Lock™.
• Press and release to turn Sure-Lock™ OFF.

WARNING

• Verify there is NO power to the opener before installing wall console and/or wall console wires.
• Use of any other wall console can cause the door to operate unexpectedly and the light not to work. Use only the included wall console.

CAUTION

• Staples which are too tight can cut or pinch wires. Cut or pinched wires can cause the wall console to stop working. When using the insulated staples, make sure you fasten them only as tightly as needed to hold the wire snugly.

Genie Series III Wall Console Tools Required for Installation

Series III Wall Console - Replacement

Use these instructions when replacing a Series III wall console.

1. Install Replacement Wall Console
• Disconnect power to powerhead.
• Remove wires from existing wall console.
• Split and strip ends of wire if required (Fig. 2).
• Fasten wire to control board screws on back of wall console (Fig. 3).
– Striped wire to the + (plus) terminal
– White wire to the - (minus) terminal
• Mount wall console to wall using screws provided.
• Reconnect power to powerhead.
• Check operation of each wall console button and feature.

Genie Series III Wall console replacement instructions



Series III Wall Console - Expansion

Use these instructions when you are expanding or adding to an existing Series III wall console.

1. Wall Console Wiring (in series or in parallel)
• Disconnect power to powerhead.
• Pick a convenient location for mounting new wall console
NOTE: Securely anchor wires to ceiling and wall using insulated staples (Fig. 5). Staples should be snug only.
• (in series) Run wire from new wall console to existing wall console (Fig. 7).
– Split and strip ends of wire (Fig. 2)
– Fasten wire to control board screws on back of existing wall console.
Striped wire to the + (plus) terminal
White wire to the - (minus) terminal
• (in parallel) Run wire from new wall console to powerhead (Fig. 8).

– Route wire through wire guide on powerhead (Fig. 6)
– Split and strip ends of wire (Fig. 2)
– Insert wire into terminal holes and lightly press in the locking clips above each terminal hole (Fig. 8)
– Confirm wire lock by lightly tugging on the wire. Wire should remain in the terminal hole.

2. Fasten wire to control board screws on back of new wall console (Fig. 3).
Striped wire to the + (plus) terminal
White wire to the - (minus) terminal

3. Reconnect power to powerhead.
• Check operation of each button and feature of both wall consoles.

37222R Genie Series III wall console installation, adding





Questions & Answers

Ask a Question
  • Will this work with genie intelligence G 1000 model # 3020

    This will work with the IntelliG 1000 if you already had the Series III wall console and have not replaced the circuit board. If you are not sure, please contact Genie customer service at 1-800-354-3643 for assistance.

  • Will this work with the 3060L series opener? The light will not shut off automatic.

    No, this will not work with the 3060L model. You would need the Series II wall console, 39165R. If you would like to troubleshoot the lights not turning off before purchasing a wall console, please contact Genie customer service at 1-800-354-3643 for assistance.

  • Will this work with model CM8600IC/M, and if not, is there a 3 button wall console I can use?

    This one will not. You would need the Series II wall console, 39165R.
