Technical diagram of replacement parts for Genie model ChainLift® 800 (2022)- ReliaG® 800 (2024)- ChainLift 700 (2027)- QuietLift® 800 (2042) garage door openers.
-
Enlarge Image
1 – Obsolete – Light Lens Cover
3 – Obsolete – Light Socket
4 – 37030A.S - Motor
5 – 39537R.S – Circuit Board (only, no plastic cover)
-
Enlarge Image
Not Shown – 38416A.S – Sprocket, Belt
Not Shown – 38415A.S – Sprocket, Chain
2 – Obsolete - Pulley, Belt/Chain
3 – Obsolete – Chain/Belt
Not Shown – 36445A.S – Straight Door Arm
Not Shown – 36446A.S – Curved Door Arm
Not Shown – 20060A.S – Master Link, Chain
A – 36436A.S – Parts Pack, Rail Hardware
B – 36437A.S – Parts Pack, Rail Hardware
C – 36438A.S – Parts Pack, Hardware & Header Bracket
D – 36439A.S – Parts Pack, Powerhead & Mounting Hardware
E – 36440A.S – Parts Pack, Hardware & Door Bracket
F – 36441A.S – Parts Pack, Hardware for arms & carriage
-
View Details

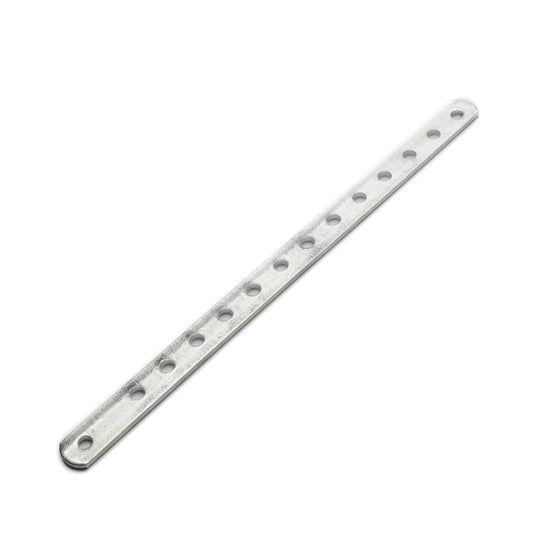

Straight Door Arm - 36445A.S
Regular price $7.96 USDRegular priceUnit price per -
View Details

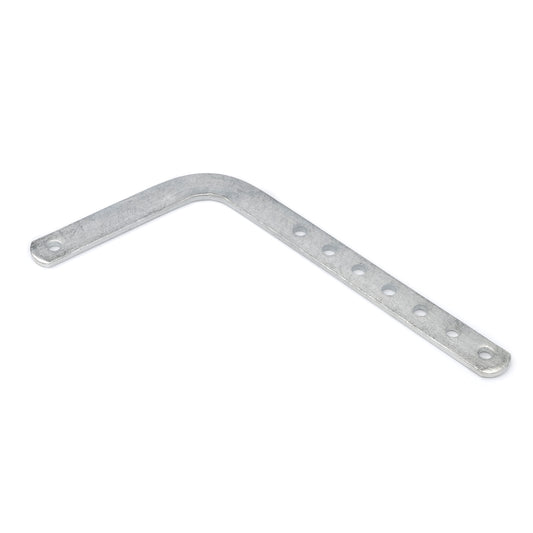

Curved Door Arm - 36446A.S
Regular price $7.96 USDRegular priceUnit price per -
View DetailsSold out

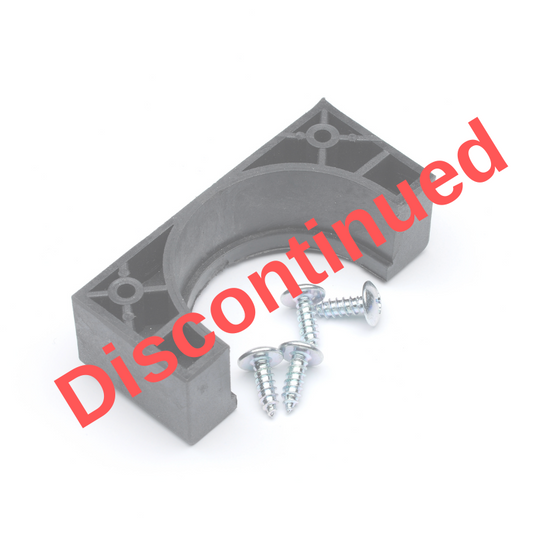

Belt Sprocket Guard - 36608A.S
Regular price $4.14 USDRegular priceUnit price perSold out -
View Details

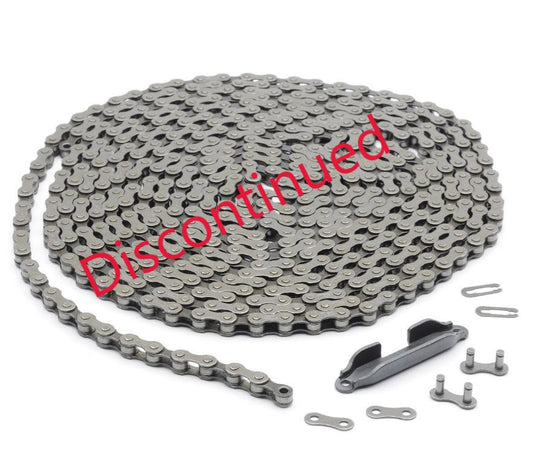

Replacement Chain for 7' Garage Door Opener- 36452A.S
Regular price $64.99 USDRegular priceUnit price perSold out -
View DetailsSold out
Light Lens Cover- 36435D.S
Regular price $32.99 USDRegular priceUnit price perSold out
