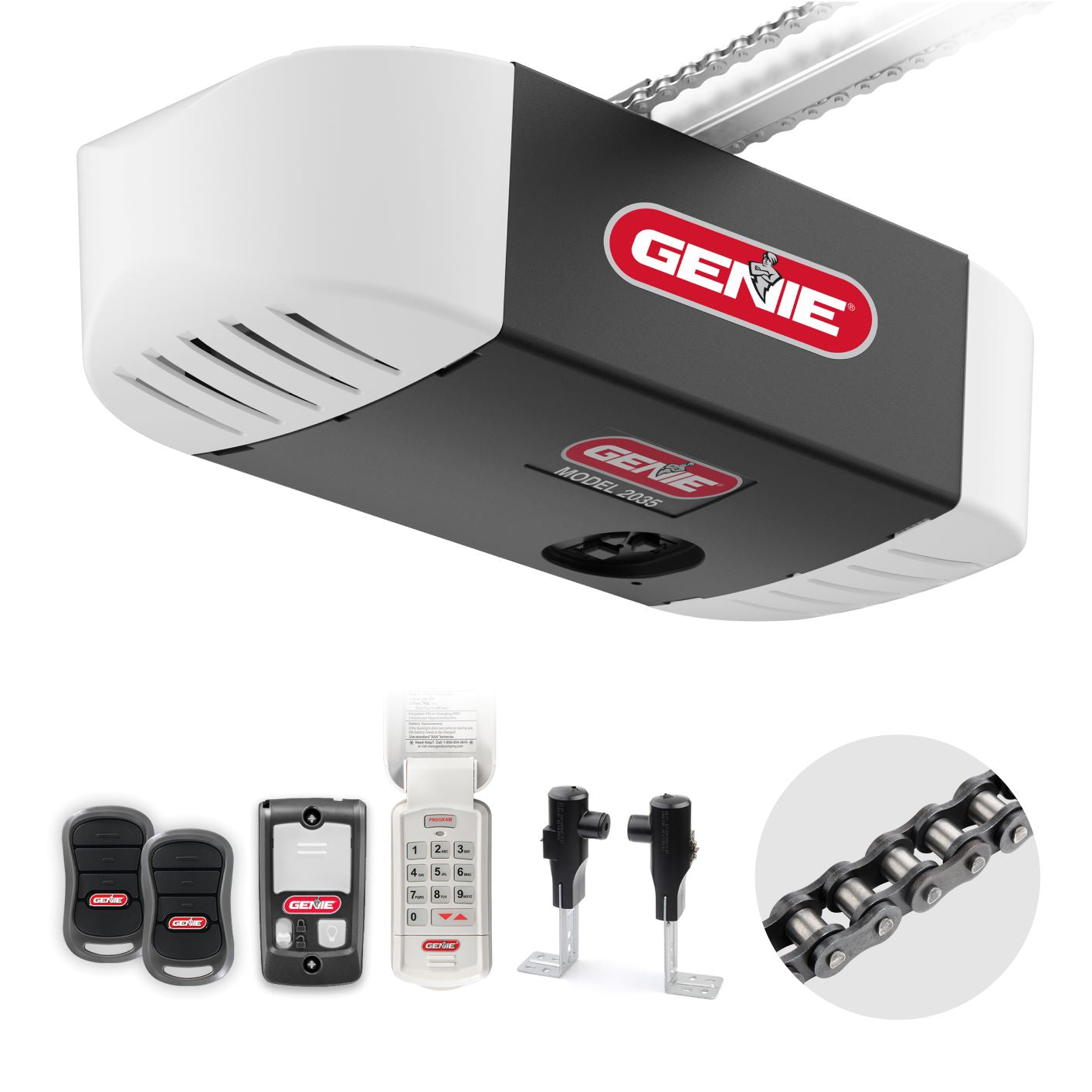

2035-TKV Chain Drive 550- Model ½ HPc Garage Door Opener

Where is there training button located on the unit

The training programming can be accessed by pressing and holding your PRG/SET button for several seconds until a blue light illuminates, then release and a purple light will flash, you may then complete your programming of remote devices.

How do I adjust the travel distance on a 2035-TKV garage door opener

Please see below instructions to reset the limit settings on a 2035.

To reprogram your limits, you will want to start with your door in the open position and engaged to the opener (make sure the red cord has not been pulled, if so lock it back into the bullet on the chain or belt before proceeding). To program the limits, you will want to press and hold the down arrow button (-) until the long LED comes on blue.  Release, and the LED will begin to flash blue. Press and hold the down arrow button (-) to close the garage door. When the door lightly touches the ground, you will release. Press and release the square button. Both LEDs flash blue and go off. Press and hold the open arrow (+) until the long LED come on blue. Release. Press and hold the open arrow to open the garage door. When the door is all the way open (do not allow it to hit the powerhead). Release. Press and release the square button.  Both LEDs flash blue and go off. Go to the wall console and press and release the button on the wall to fully close the garage door. Once the door is fully closed, you will want to press and release the button on the wall again to open the door all the way.

I have a newly installed, but not yet working model 2035 Genie,chain drive opener. Once installed, and power on, one of the safe-t-beams lights up red and the other does noting. The wired inside wall console lights up red.. is the safe-t-beam the issue (not totally properly aligned?) or could it be something else. The outside control has not be programed or installed.

If the green safe-t-beam sensor is not lighting up, the issue is either the green sensor is defective, or the wiring to the green sensor is not connected or damaged in some way.  You can check the wiring to your green sensor and make sure all connections are good, also check for frayed wiring or damage back to the motor box.  If no damage is observed we would recommend replacing the safe-t-beam set.

How much is this product

Please visit the retailer link for the prices on this garage door opener.

Can this unit be installed on a single panel ( single 16' x 7' ) garage door? Not a sectional door.

No, this model garage door opener cannot be used on a one piece door. It is recommended for sectional garage doors only.

Motor does not run with remotes or wall console. Motor runs manually by pressing up and down buttons. Wall switch lights up and lights work. Also sensors are working one lights up red other green. Thanks.

Are there any lights on the bottom of the powerhead that are on or flashing?

Can this opener operate an insulated (steel insulation steel) 10’x10’ clopay garage door? Do I need the extension kit? If so what model#?

No, this will not work on a 10 foot high garage door opener.

Where is the smart or learn button?

The 2035 model has a square program button on it that works as the learn button.

I open the door 1-2 feet and it drifts closed

To check the balance of your garage door, disconnect the operator from the door (in the down or closed position) by pulling the emergency release cord. Lift the garage door to where you can see halfway outside the garage. The door should stay there, a slight movement to settle is acceptable. To check for smooth operation, roll the door all the way up and down slowly with your palms to check for smooth, even travel and that there is no binding or sticking. If the garage door is not balanced or operating properly, we would recommend that you call your local professional garage door installer.

Will the 2035 open a 2 car garage door?

If it is one garage door, and 7-foot high, and the door is well balanced it will work.

How much clearance for safety beams?

Your safety beams should be mounted 5"-6" above the floor of the garage.

Is all mounting hardware included, lag bolts etc

Yes, the hardware needed to install the opener comes in the box.
