Screw Drive Carriage Assembly with Magnet- 36179R.S

Product Description
$19.99
Maximum quantity available reached.

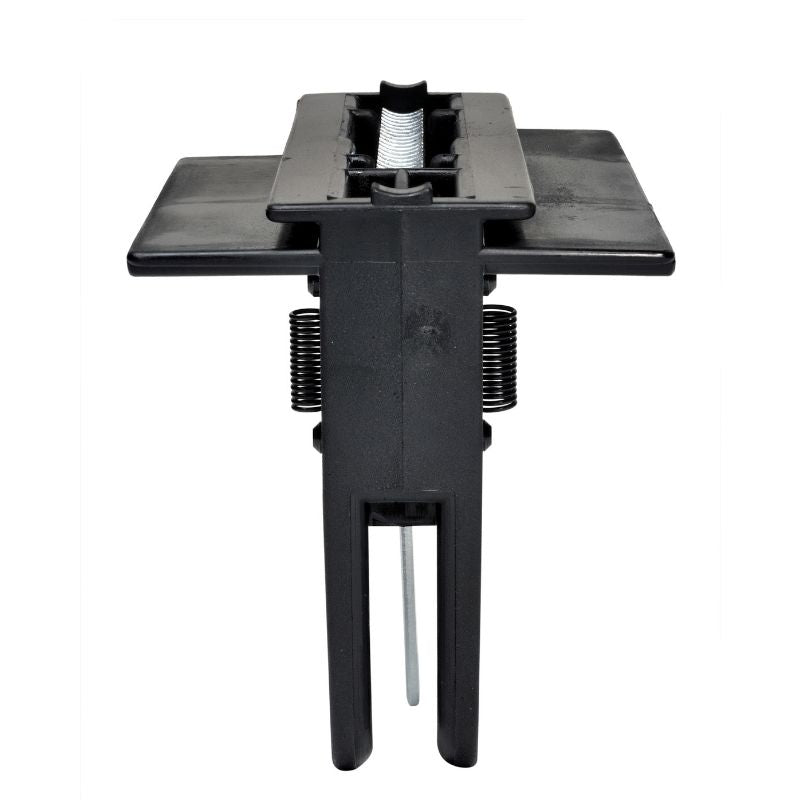

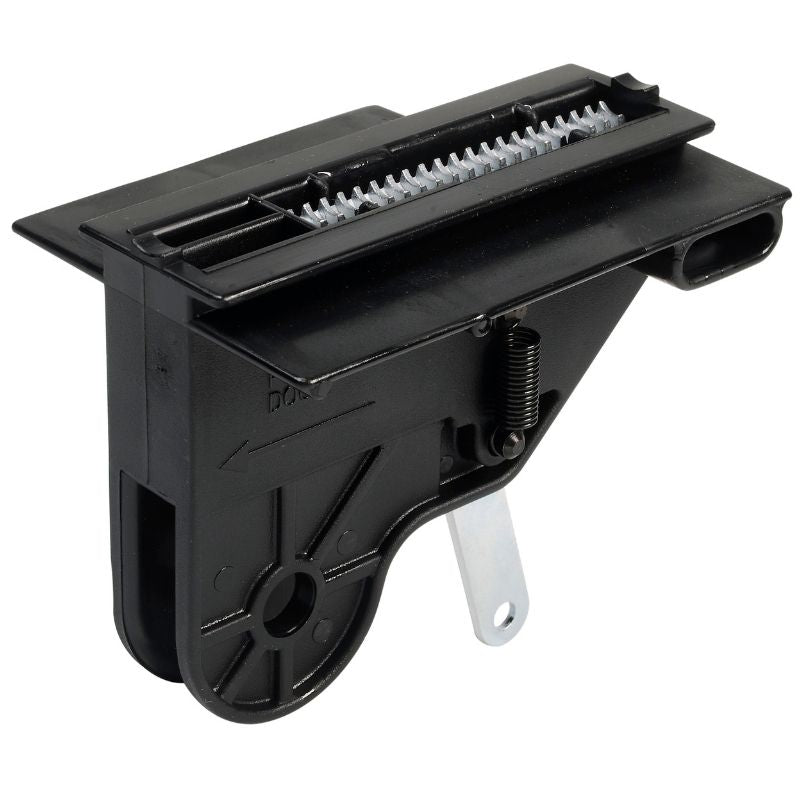

The Genie screw drive carriage assembly with magnet has teeth inside it that connect to the screw inside the garage door opener rail. The carriage teeth gripping the screw allows for smooth operation of running the garage door up and down the rail. If the motor on your garage door opener is running and the screw drive is turning, but the garage door is not operating (you may even hear a grinding or chattering noise), then it is time to replace the screw drive carriage.
  • Works with magnetic or mechanical style limit switches
  • Lever for emergency release cord to attach to keeps you safe in case of a power outage or other emergency to release the door quickly
  • The carriage is designed to protect the screw drive from wear and tear
  • Genuine Genie replacement part
  • The carriage is often referred to as a Genie trolley

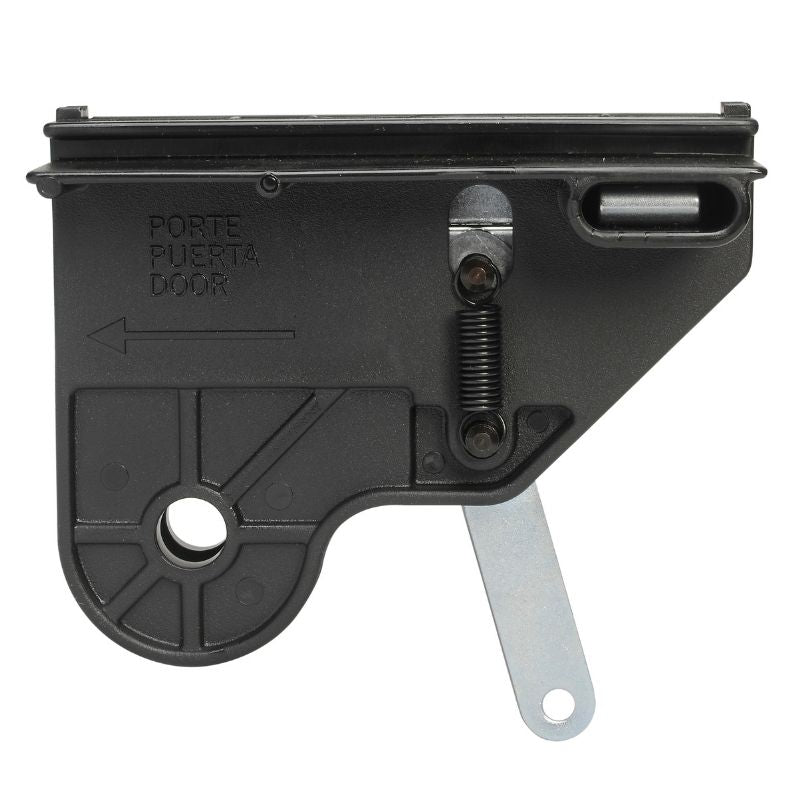

  • Easy DIY replacement, the screw drive carriage even has an arrow pointing to the door to make sure it goes on correctly (check out this blog article with instructions and video here)
  • Direct replacement for previous/ discontinued carriage parts numbers- 36179R, 34107R, 34107R.S, 20414R, 25589R, 25589S
  • This same screw drive carriage was used in many older model Genie garage door openers over the years. See the list below.
  • Compatible with Models:  1060, 1560, 2560, 3560, 3860, IS525, IS525/B, IS550, IS550/B, IS850, IS900, IS900/B, IS920, CM7500, CM7600, CM8600, PRO95, CM8600-FN, H4000, H6000, IS525, IS525/B, IS550, IS550/B, IS850, IS900, IS900/B, IS920, 2060L, 3060L, IMS1000, ISL950, ISL950/B, ISL980, ISL980/B,  G4050CL, G5000CL, G5050CL, G5500CL, G5700CL, G8000CL, GX9000CL, GXL9500CL, GXL9550CL, GXL9900CL, GXL1000CL,Excelerator, H8000-07, H8000D, ISD990, ISD995, ISD1000, PRO99-2IC, PRO99FN, CMD9900, 4560, 4060L
Sku: 36179R.S

To replace the 36179R.S Genie Screw Drive Carriage follow these steps:

1- With the garage door in the closed position, disengage the screw drive carriage by pulling the red emergency release cord.  After pulling the release cord, slide the old worn-out carriage to about 6 inches from the door end of the rail.

Genie screw drive carriage replacement 36179R.S

2-  Pull the clevis and cotter pin, from the garage door arm that is attached to the old screw drive carriage.  Hold the garage door arm and do not let it fall against the garage door. Once the clevis pin and cotter pin are both removed, slowly slide the door arm down toward the garage door.

Replacing the 36179R.S screw drive carriage, removing the clevis and cotter pin

3-  Slide the screw drive carriage down closer to the garage door (until it is about 2 inches from the end of the rail).  Then remove the nut and bolt from the header bracket that is above the garage door.  Hold onto the rail while doing so. (You may want to use a ladder to rest the garage door opener rail on), or have a second person helping you.

4- Slightly lift up on the screw drive rail, slide the old carriage out of the rail.  Then slide the new 36179R.S screw drive carriage back on the rail. Reattach the rail to the header bracket above the garage door with the nut and bolt.

5- Reattach the garage door arm to the screw drive carriage and reconnect the door arm with the clevis and cotter pin that was removed.  After reattaching, re-engage the new screw drive carriage assembly by pulling the red emergency release cord towards the powerhead of the garage door opener.

36179R.S Genie Screw Drive Garage Door Opener Carriage Replacement



QUESTIONS & ANSWERS

Ask a Question
  • Will this product work on model 3060L-07/M?

    Yes, it is compatible.

  • Will this work for ISD-990

    Yes, it is compatible.

  • Will this work for the ISL950/A model?

    Yes the 36179R.S is the correct carriage for model ISL950/A.

  • Will this part work for model IS550/A ?

    Yes, the 36179R.S carriage is compatible with the model IS550/A.

  • I have a genie garage door opener model 4062-TKNMV. I need a new srew drive, what is the part # I need for this unit?

    The model 4062 would use the following parts:
    Screw Drive Carriage: 37845R.S
    Screw Drive Shuttle: 36664R.S
    Screw Drive Rail: 38244R.S
    Normally the carriage would need to be replaced, not the entire rail. If you need assistance, please contact Genie customer service at 1-800-354-3643.

  • I have a Power Lift 900 Model 2562, will this screw drive work in this unit?

    No this carriage assembly doesn't work on the PowerLift 900 garage door opener, here is the link for the correct carriage assembly
    https://store.geniecompany.com/collections/carriages/products/screw-drive-carriage-assembly

  • Will this work on model GXL9550

    Yes, it will.

  • To eliminate the squeaking noise when the Garage Door opens and then it does not squeak anymore. To eliminate the noise, I plan to change the Screw Drive Carriage Assembly with Magnet- 36179R.S. However do I need to replace the Rail Assembly also or First Rail Section ?

    You do not have the replace the rail when changing the carriage.

  • where is the model number on the opener?

    The model of the garage door opener is normally under the light bulb cover.

  • will screw drive carriage with magnet 36179rs fit genie modelis 550_A?

    Yes, it will.

  • Will the Screw Drive Carriage Assembly with Magnet- 36179R.S fit Genie model 450?

    No, it will not.

  • Does this work with model 4052 screw drive?

    Can you verify your model number? If it is supposed to be a 4062 - then no, this carriage will not work. You would need the 37845R.S carriage.

  • Does this carriage work for the Stanley SD 550 screw drive garage door opener?

    Yes, it does!

  • Does this part work with model ISL950/A?

    Yes, it does!

  • What screw drive carriage do I need for Genie model ACSR3

    The ACSR3 is a receiver number. Can you check the model again on the powerhead. It should be something like GXL 9500, or ISD950, H6000, etc.

  • Will this carriage work with the Pro-88 model?

    Yes, it will.

  • Is this compatible with h2000c? Thank you.

    No, it is not. The H2000C was a ChainGlide model. We no longer have the carriage for that model.

  • Does this carriage work for Genie model 3062?

    No, it does not. The 3062 model garage door opener would use the 37845R.S screw drive carriage.

  • Model sd9000 will it work?

    Yes, it will.

  • Does it fit on a model 9005 1/2 horse

    Yes, it will.

  • Does it work model 7035?

    No. The 7035 model garage door opener would use the 38893R.S model carriage.

  • does this work with model 12A

    The 12A is a receiver number. Can you check your model number? It should be under the light bulb cover or on the rail about twelve inches from the powerhead.

  • Will this fit model ISL950A?

    Yes, it will.

  • Does it work with model isd990?

    Yes, it does.

  • Will this work with Power Lift 900

    No, it will not. The PowerLift 900 model garage door opener uses the 37845R.S screw drive carriage.

  • Does this work with model #2562

    No, it will not. The 2562 uses carriage part number 37845R.S.

  • Does this carriage 36179RS work in place of the genie G-GX-GXL part #25533A I know it’s a old genie but I need a new carriage please answer as soon as possible

    Yes, it will.

  • Does this work with the Pro Max Chain Slide 2 model PCG700ML

    No, it will not. We no longer have the carriage for the PCG700ML model garage door opener.

  • Will this work on model PRO951C

    Yes, it will!

  • Will this work on model ISL950/S

    Yes, it will.

  • Does this part fit for an SD5050 Model? Let me know please.

    Yes, it does.

  • Can I replace the Carriage Assembly (37845R.S) and Shuttle (36664R.S) with the Carriage Assembly (36179R.S) ? It's for a POWERLIFT 900. Thank you

    No, the 36179R.S carriage will not work on the PowerLift 900 model garage door opener.

  • Does this part work with the model POWERLIFT 900?

    No, it will not. The PowerLift 900 uses the 37845R.S carriage.

  • Does this work with Model CM8600-XL/M

    Yes, it does!

  • Will it work for a pro 1024?

    No, it will not.

  • Will this work for 1/2 h.p Model 3060L -07/M

    Yes, it will.

  • Would it fit model H7000-07?

    Yes, it will!

  • Does this work with model 3062

    No, this carriage will not. The 3062 model garage door opener uses the screw drive carriage part number 37845R.S.

  • This is a follow-up to a previous question this afternoon. My opener is a Blue Max build in week 10 1991. I have looked all over and can not fine a model number. It is a screw drive ant the carriage looks JUST like your part number 36179R.S. Can you tell me if this would work? Thanks

    Yes, it will.

  • Does the 36179R.S carriage work with a Blue Max 12a made in 1991? Looks like a exact replacement by the pictures, just want to make sure.

    Yes, this will work with the BlueMax.

  • Does this carriage work with Model SD9000?

    Yes, it does.

  • Hello - Will this work with Genie Mode; IS525/A ? Thank You.

    Yes, it will.

  • Will this work with the Genie Intellicode Chain Glide GCG350? Thank you

    No, it will not. We no longer have the carriage for the GCG350.

  • Will part 36179R replace 37845R.S carriage? This if for a PowerLift 900 model 2562.

    No, the 36179R will not work with the 2562 model. You would need the 37845R.S carriage.

  • Does Genie screw drive carriage replacement trolley work on Stanley garage door opener?

    No, it will not.

  • Will this part work with the ProMax model number PCG650

    No, this is for screw drive models only.

  • I need model #2562 genie carriage screw drive replacement part with the teeth (the part that’s worn out that looks like a track)

    The screw drive carriage replacement for the 2562 model garage door opener is the 37845R.S part number.

  • my model is IS550/A , which screw drive assembly do i need?

    You would need the 36179R.S Screw drive carriage for the IS550/A model.

  • My manual shows model numbers SD2000, 3000 AND 5000. Will the carriage with the magnet shown here work for me? Will i have to take the rail, track and drive down and disassemble it in order to put the carriage on? Thank You...

    Yes, it will. You will need to take the door end of the rail off the wall to replace it.

  • Is this the correct carriage for my opener, Model 2562?

    No, it is not. The 2562 model garage door opener takes the carriage part number 37845R.S.

  • Will this work on a model 12A?

    12A is a reciever number. The model number for your garage door opener should be on the back panel of the powerhead or under the light bulb cover.

  • Will this work for a cm8600-xl/m

    Yes, it will.

  • Will this work with model GCG350ML?

    No, this carriage is for screw drive model garage door openers only. We no longer have the carriage for the GCG350ML.

  • Is this compatible with Pro99-IC?

    Yes, it is!

  • Will this work for z19220 that the only number I see on there plus on rails it say genie pro 1/3 h.p. 8200

    Yes, it will.

  • does this work with genie 5500 model?

    Yes, it will!

  • will this work for a model 2562?

    No, it will not. For the 2562 model garage door opener, you would need the screw drive carriage part number 37845R.S.

  • What part will replace model 450 carriage?

    We no longer have parts for the model 450.

  • Will this part work with very OLD model 450 screw drive?

    No, it will not.

  • Will this part work with a model IS920/A ?

    Yes, it will!

  • Will this fits craftsman part no 41A4315-7?

    No, it will not.

  • Will it work with a 1/3 hp model G8000?

    Yes, it will!

  • will this work with a G5000 ? it was installed in 1995 or 1996

    Yes, it will!

  • Will this work on 1/2 hp genie model # G5050 ?

    Yes, it will!

  • Does this work on a Genie Power Lift 900?

    No, it does not. The Genie Powerlift 900 uses the screw drive carriage part number 37845R.S.

  • Will this work on a model 450

    No, it will not.

  • Does this part work with a Model 404?

    No, it will not.

  • Can this more recnt version of this part be used to replace a broken one on a GENIE E-1/ESR-1 series door operator ?

    Please contact Genie customer service at 1-800-354-3643 to verify your model number.

  • Is this compatible with model ACSR3G?

    The ACSR3G is actually a receiver number. To verify your model number, it should be under the light bulb cover.

  • Will this fit model PRO99-IC?

    Yes, it will!

  • Will this work for a GXL9550

    Yes, it will!

  • Will the part 36179RS work on genie model is900a door opener

    Yes, it will!

  • dose this carriage fit Model SD 5050

    Yes, it will!

  • I have a Genie Excelerator II revolution series, I need a carriage assm, and the drive connection collar and C clip, please help me select the correct parts?

    For the Genie Excelerator II (model 4062)- the correct screw drive carriage part number is 37845R.S. The Collar is part number 19806A04.S, and the clip is 19807A04.S.

  • Will this work with a stanley model sd550?

    No, it will not.

  • Will it fit model ISL 950A

    Yes, it will.

  • Does this part work for Model 2060L-07 model? Looks the same but couldn’t find this model on the website list. If not can you give me a SKU for same part for Model 2060L-07? Thanks

    Yes, this carriage will work with the 2060L-07 model.

  • Does this part work with the Model GXL 9500?

    Yes, it does!

  • Will this work for SD9500

    Yes, it will.

  • Does this work for model IS550/A?

    Yes, it does!

  • I have SD9005. Does this screw drive Carriage work for this model number?

    Yes, it does.

  • This part will work with H4000-07/M ?

    Yes, it will!

  • will this part work with intellicode ISL950/A

    Yes, it will!

  • Does this work with Power lift model 2562?

    No, it will not. The screw drive carriage assembly for the 2562 model is part 37845R.S.

  • Does this part work with the Model SD5050 also?

    Yes, it does.

  • Will this work with a 1/3 hp model cm7500-s?

    Yes, it will.

  • Will this work with 4062?

    No, the 4062 uses the 37845R.S Screw Drive Carriage Assembly.

  • Will this work with my powerlifting 900

    No, it will not. The PowerLift 900 would use the 37845R.S Screw Drive Carriage Assembly.

  • Does the carriage work with a model: IS900A?

    Yes, it does.

  • Will this work with genie model ISL950/A

    Yes, it will!

  • Will this work with model G5500

    Yes, it will.

  • what is the warranty on this part?

    When buying a part or accessory the warranty would be one year.

  • Does the Screw Drive Carriage 3617R.S work for model# CM8500=S?

    Yes, it does.

  • Is this part (Screw Drive Carriage Assembly with Magnet- 36179R.S) compatible with a PRO 88 model ? Thanks for your answer.

    Yes, it is!

  • Will this work on model ISD 990

    Yes, it will!

  • How to adjust the light that comes on when the door is raised or lowered. The light on my opener won't go out. The model is CM7600IC with mechanical limited switches?

    Hi! The constant light could be caused by a few different things. In order to eliminate these, here are a few steps to try. First, you would want to remove the wall button from the wall. Then take the two wires off the back of it and leave them off. You would then want to run the unit with a remote, then wait at least five minutes and the light should time out. If they do go out, you would want to replace the wall console (with a series II 39165R).  If they do not, then you would want to remove the wall button wires from the power head. Again, run the unit with a remote, wait the five minutes and see if they go out. If they do, you would want to replace the wall button wire from the wall button to the power head. (This is 18 to 22 gauge doorbell wire 35265A.S) If they do not go out after both of these then the circuit board would need to be replaced in the unit. For the CM7600IC, this would be the Sequencer Board (20386R.S) that has the relay for the lights.

    As always, if you need assistance with this troubleshooting, or have any questions, you can contact our Genie customer service at 1-800-354-3643.

  • Does this part work with Model PMX500ic/B

    No, it will not. Please see our breakdown for the PMX500IC/B model here, and determine by which rail you have. You can also contact our customer service at 1-800-354-3643 for assistance.

  • Does this work with ISL950/A?

    Yes, it does!

  • does this part work with model 1022?

    No, it does not. The carriage for the 1022 is part number 36453A.S.

  • Will this carriage work with Power Lift model number 2562?

    No, it will not. You would need the carriage assembly part number 37845R.S.

  • Need an Up limit switch for Genie Blue MAx CM8500. Do you have it

    You will need the limit switch part number 20113R.S for the Blue Max CM8500.

  • Will this work with imperial 10007 model

    No, it will not.

  • Will this fit model # acsr3g?

    The ACSR3G is a receiver number. To verify your model number, please contact Genie customer service at 1-800-354-3643. We can help determine which garage door opener you have and if it is compatible.

  • Does this part work for the CM8600IC/A model?

    Yes, it will!

  • is this the correct screw drive carriage for model CM 8500-S 1/2 H.P. Genie Blue Max?

    Yes, it is.

  • Will this fit my ISL90/A model

    Yes, it will.

  • Does this work with GX9000 1/2 HP screw drive model?

    Yes, it does.

  • Will this work for a SD9000

    Yes, it will!

  • Does this part work with model 2060i-07?

    Yes, it does.

  • Does it work with MODEL #IS900/A ?

    Yes, it does.

  • will genie screw drive carriage assembly with magnet 36179R.s work on genie model#1S550-A?

    Yes, it will!

  • I need the carriage that fits my genie intel—1/2 H.P. model 1000/A genie garage door opener Receiver model ACSR3G. What part should I get? Please advise.

    Yes, this 36179R.S is the correct one.

  • will this fit the medallion series GLX 10000

    Yes, it will.

  • Will this assembly work on my model sd 5050?

    Yes, it will.

  • This item will work with model H6000-07

    Yes, it will.

  • Will this work on a ISL950/A?

    Yes, it will!

  • Will this work with the 3060L model?

    Yes, it will!

  • Will this replace the 34107R carriage part number?

    Yes! This will replace the old carriage part number 34107R.

  • will this carriage work on a model H4000-07/M ?

    Yes it will!

  • Does this part work with an IMS1000/A?

    Yes it does!

  • I have a H6000A, but this looks almost exactly like my carriage. will it work with my unit?

    Yes this will work on the H6000A.

  • does this part work with model H6000-07

    Yes it does.

  • Will this fit my is550/a model

    Yes. This Carriage will fit the IS550/A model.

  • Does this carriage work with model #H8000D

    Yes, the 36179R.S carriage will work with the H8000D model.

  • Does this part work with the Model H4000A also?

    Yes, this will work with the H4000A.

Related products
