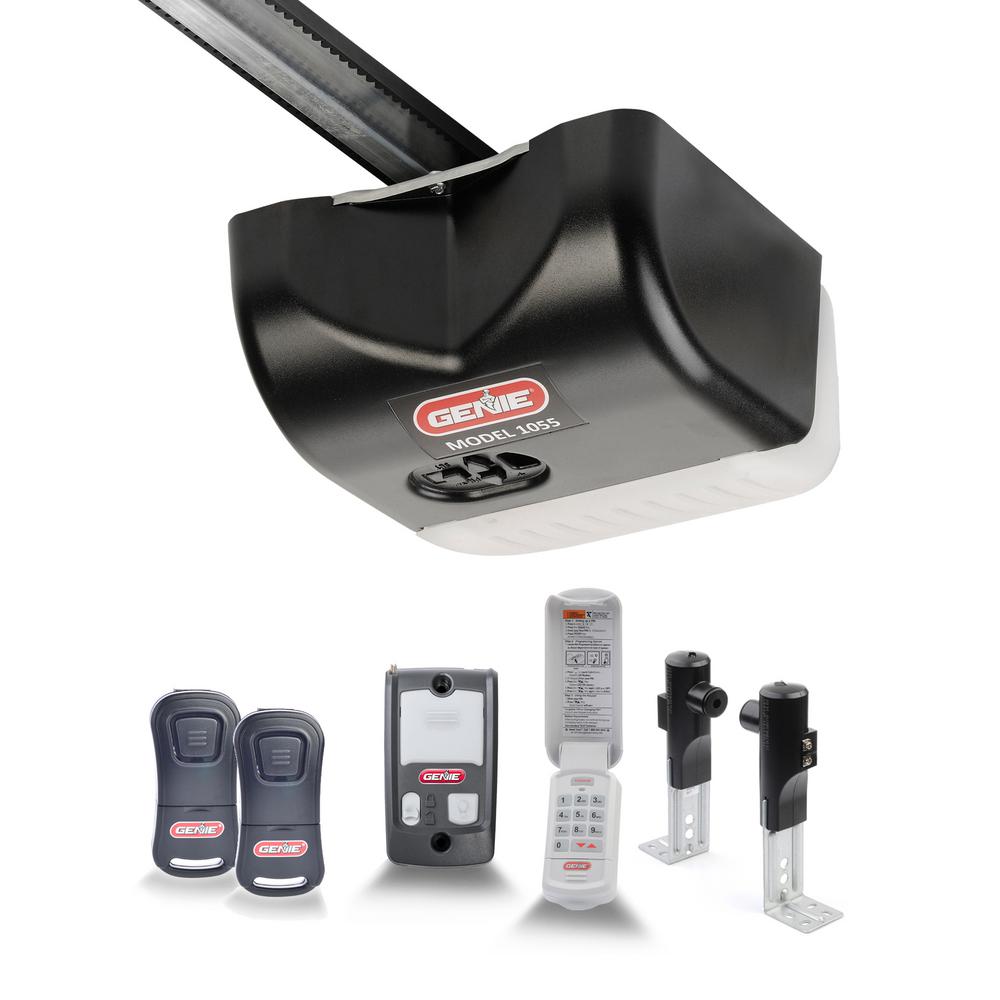

QuietLift 750 3/4 HPC Ultra-Quiet Belt Drive Garage Door Opener
This Model is Sold Exclusively at The Home Depot
The Genie QuietLift 750 garage door opener offers the best in a traditional belt drive garage door operation. Dependable, reliable, and durable; QuietLift 750 is an affordable option with superior design and performance. This Garage door opener also has all of the accessories that you would expect; two Genie Intellicode garage door opener remotes, a wireless exterior keypad, and an interior wall console. You can expect smoother door travel and easier installation than most garage door openers at this price. Safety features include the Safe-T Beam garage door safety sensors and GenieSense diagnostic technology. The Safe-T-Beam system helps prevent accidents with an infrared beam of light across the door opening. The lighting system on the garage door opener is made for one super bright Genie LED light bulb. The shape of the garage door opener has an innovative design that directs light toward the rear of your garage, where you needed most. The Genie QuietLift 750 is the perfect way to get peace of mind and convenience in a garage door opener.
- 3/4 HPC DC motor will smoothly and easily lift your sectional garage door up to 7 ft. height and up to 500 lbs (up to an 8' high door with an extension kit sold separately as part number 39026R).
- Maintenance-free precision machined motor and gearbox is backed by a 10-year limited warranty
- Ultra-quiet steel reinforced belt allows for a reliable and smooth operation
- Easy to install 5-piece tube style rigid rail system snaps together with no special hardware required
- Safe-T-Beam garage door safety system protects your pets and family by reversing the closing door if anything passes through the infrared beam
- Keep your home safe with the state-of-the-art security of Genie Intelli code that changes the openers access code when the remote is used
- GenieSense technology minimizes wear and tear by always monitoring the door
- Includes a wireless exterior keypad, 2 pre-programmed remotes, lighted wall console and easy to follow instructions
- HomeLink + Car2U integration comes standard, no additional hardware required (Genie Exclusive)
- For best results use the Genie LED light bulb, specifically designed for garage door openers
- Model 1055-TKV
Notice to California Residents: As of 07/01/2019, this item cannot be shipped to the state of California due to Senate Bill No. 969. If the shipping address on any order is the state of California the order will be canceled. California residents must purchase a garage door opener with a battery backup included. Please see other options of Genie garage door openers with battery backup options to purchase.
SKU: 41126RASK A QUESTION
QUESTIONS & ANSWERSAsk a Question
my garage door opener quiet lift 750 3/4 hp ultra quiet is assembly and complete installed but i do not know how to programm and to make works
To program your limits, you will want to start with your door in the open position and engaged to the opener (make sure the red cord has not been pulled, if so lock it back into the bullet on the chain or belt before proceeding). To program the limits, you will want to press and hold the down arrow button (-) until the long LED comes on blue. Release, and the LED will begin to flash blue. Press and hold the down arrow button (-) to close the garage door. When the door lightly touches the ground, you will release. Press and release the square button. Both LEDs flash blue and go off. Press and hold the open arrow (+) until the long LED come on blue. Release. Press and hold the open arrow to open the garage door. When the door is all the way open (do not allow it to hit the powerhead). Release. Press and release the square button. Both LEDs flash blue and go off. Go to the wall console and press and release the button on the wall to fully close the garage door. Once the door is fully closed, you will want to press and release the button on the wall again to open the door all the way.
STEPS TO PROGRAMM AND MAKE UP WORKS THE CONTROLS WHAT STEPS TO DO TO PROGRAMMING AND MAKE WORKS
The limit programming instructions are below:
To reprogram your limits, you will want to start with your door in the open position and engaged to the opener (make sure the red cord has not been pulled, if so lock it back into the bullet on the chain or belt before proceeding). To program the limits, you will want to press and hold the down arrow button (-) until the long LED comes on blue. Release, and the LED will begin to flash blue. Press and hold the down arrow button (-) to close the garage door. When the door lightly touches the ground, you will release. Press and release the square button. Both LEDs flash blue and go off. Press and hold the open arrow (+) until the long LED come on blue. Release. Press and hold the open arrow to open the garage door. When the door is all the way open (do not allow it to hit the powerhead). Release. Press and release the square button. Both LEDs flash blue and go off. Go to the wall console and press and release the button on the wall to fully close the garage door. Once the door is fully closed, you will want to press and release the button on the wall again to open the door all the way.
How do I connect to my genie ultra quiet 3/4 belt drive to my home link in my auto
Here are the instructions for programming your Homelink to your QuietLift 750 3/4 HPC Ultra-Quiet Belt Drive Garage Door Opener garage door opener.
If you have nothing else programmed into your HomeLink:
Press and hold the two outer buttons on the HomeLink until the HomeLink light begins to flash. Release the buttons. Now press and hold the HomeLink button you want to use and your hand-held remote button at the same time. The HomeLink light should start flashing when you press it in, keep both buttons held in until the HomeLink light flashes rapidly. Then release both the remote and HomeLink. Go up to the powerhead on the ceiling and press and square button until you see a blue light beside it, release the square button, you should now have a purple flashing light. Go back to your vehicle and press and hold the HomeLink button you paired with your remote, count 1,2, release, do the pressing, counting, and releasing 3-4 times. If you have other things programmed into your HomeLink skip the step "Press and hold the two outer buttons on the HomeLink until the HomeLink light begins to flash".
where's the learn button
There is a square button on the bottom of the powerhead. When it is hanging it is facing the floor.
Instructions for installation were not included in box. Is there a link to the instructions? I don't want to watch a video.
I apologize that these were missing from your box. You can view the installation instructions here.
Everything is hooked up correctly door is set but when I try to use remote or button the powered just clicks
Are there any lights flashing on the bottom of the powerhead?
How do you turn off the Sure-Lock so the door will open?
You will switch the lock button on the wall console to unlock.
Does this opener have soft start and stop like some of the other ones do ?
No, it does not.
I have one of these it's the genie 650 and it has blue wires and white wires going to it but it has a thick black wire coming out of the side of it right there by the wire connections where you have the brown tan white and black and down the front side of it there's a big black wire hanging out of it and we do not know where that goes for some reason this thing is not working and I need to know if that wire needs to be attached somewhere but I can't find a diagram for it can you please help me
Please contact Genie customer service at 1-800-354-3643 for technical assistance.
Can the Quiet lift 750 be wired without using the Safe-T-Beam sensors? Meaning, can you just not wire the sensors in and just wire the wall console into the powerhead?
No, the Safe-T-Beams are required to be installed.
Hello I am wondering what rail extension I need for Quiet lift 750 3/4HPC ultra-quiet belt drive ,model 1055 garage door opener. I main extension I see does not show the model I purchased.
The Quiet lift 750 3/4HPC ultra-quiet belt drive ,model 1055 garage door opener will use the 39026R belt drive extension kit.
How do I program a universal clicker brand remote to this model and is there a way to adjust how fast it opens and closes as it seems a lot slower than my previous 1/2 hp opener.
The Clicker remote is our competitor Chamberlains product. You would need to contact them in regards to programming instructions, we are not able to assist with that.
Purchase light cover?
The light cover for the QuietLift 750 is 38126A.S.
Is there a door assembly replacement part for Model #1055?
What part are you looking for?
I have a 1/2 hp craftsman , will the 3/4 motor open door to fast ? Or will it open close at same speed..?
I am not sure how fast the Craftstman garage door opener opens your garage door. The QuietLift 750 Genie garage door opener would have opening speeds of up to 7.0 inches per second. It will close slower than it opens.
Can I connect other universal remotes to it
Yes, you can.
My garage has a very low ceiling. What is the minimum height between the opened door and the finished ceiling. I have an old Sears 1/2HP chain drive unit that just barely fits and want be sure this unit will fit.
You need at least 2 1/2 inches above the highest point of travel of the garage door to install the garage door opener.
Is there an extension ket for this garage door opener? Where can I but it. On the box it says that I can use EKTB kit but cannot find.
The EKTB belt extension kit (part 39026R) is available online here.
Can you purchase a smartphone adapter for this model?
Yes, you can add the Aladdin Connect Smart Garage Door Controller.
Is there an extension kit to convert this model to open an 8' door?
Yes, there is. It is extension kit part number 39026R, model EKTB.
Using a pre-installed electric wire from powerhead (garage opener) to the wall console (wired garage opener), which has 2 wire connector. Pre-installed electric cable has 4 strands of different colors, i.e., black, red, yellow and green. Black and red are connected to terminal 3&4 and also to the wall console. Everything works well except for the Bulb. Is Green and/or yellow wire need to be connected and which terminals for the bulb to work or Black and red are sufficient ? Thanks. P.S. Garage door is working fine with remote control and wall console except the bulb is not coming on every time garage is opened or close. In addition, bulb is not working even when bulb button is pressed on wall console.
Please contact Genie customer service at 1-800-354-3643.
Does the lighted wall console in the QuietLift 750 have a motion detector to turn on the open light when motion is sensed
No, it does not.
Hi, I have Quietlift 750 and it has a problem to close a door. The red light at the receiver is dead, so I bought and I stalled new infra sensor. The red light is still off and checked voltage on the wires. It is only 0.4V at receiver and the other side has 10V. Can you guess what the problem is related? Please guide me how to fix it.
There could be a break in the wiring. Did you but Genie Safe-T-Beam replacements?
Just installed the quite lift 750 model # 1055 and want to know why I have to continue to hold the wall button for the garage door to go back down, we just used the old sensors from from the previous opener and checked the sensor eyes and they are fine. Why are we having to hold the button in order for the door to go back down. Do we have to use the Genie sensors included specifically , please help.
Yes, this is because the Safe-T-Beams are not working. You should use the new ones included with the 1055. YOu should be able to use the old wiring but replace it with the new sensors.
What do I need to get for a 8' high x16' wide door?
If your garage door is 8-foot high and you wanted to install the QuietLift 750 model, you would need to add the extension kit 39026R.
I have 2 garage doors and am replacing only 1 opener now. If I get the QuietLift w/ pre-programmed remotes, and then replace the opener for the other door, can I program the remotes to open both doors?
Yes, as long as the other garage door opener is also a Genie Intellicode model as well.
Is there an extension kit for a 8’ x 9’ door?
If the door is 8' high, you can use the 39026R extension kit. If the door is 9' high, there is no extension kit for that height.
Does this model wok for a 7 high x 16 wide garage door?
Yes, as long as the door is well balanced.
Can the rail system be shortened?
This models rail and belt cannot be cut down.
Can I wire a push button to the powerhead of a quiet live 750?
Yes, you can add a wired push button to the QuietLift 750 models.
Is there an extension kit available for a 12' high x 8' wide garage door?
No, this will not work on a 12-foot high garage door.
Where do the wires go for seniors and opener go.
On the powerhead of the garage door opener, you will find the terminals under the light bulb cover. You will attach the wires for the Safe-T-Beams to terminals 1 and 2.
For the actual Safe-T-Beams, they need to be installed by the garage door and the wires run from the powerhead to the Safe-T-Beams.
Can I use my sensors from my chamberlain model with my new genie
No, sorry the Chamberlain/Liftmaster sensors are not compatible with Genie models.
Is the wall control illuminated?
Yes, the wall console (control) on model QuietLift 750 3/4 HPC Ultra-Quiet Belt Drive Garage Door Opener has backlit illumination.
Installing a Belt Drive Garage Door Opener with the BILT App
This Genie product offers 3D Interactive Instructions in the free BILT® App available for download.
Support for models:
1035, 1055, 2036, 2033, 3053, 2035, 2055, 3035, 3055, 7035, 7055 (ChainDrive 550, Chain Drive 750, SilentMax® 550, StealthLift® 500, SilentMax® 750, Chain Glide Connect, SilentMax Connect, QuietLift Connect, Chain Drive 500, Chain Drive 525, QuietLift™ 750, StealthDrive® 750)
Genie Belt/Chain Garage Door Opener Installation Poster
Genie Belt/Chain Garage Door Opener Owners Manual
Standard Genie Garage Door Opener Features
Keeps your home and family safe by changing the access code from billions of combinations at each door activation to help prevent unauthorized access.
Patented technology that automatically finds the best line of communication between Genie® products. This maximizes the range of radio frequency devices and improves the overall performance of products.
Provides safety by continuously monitoring the operation of the garage door opener, stopping the operation to alert you when significant changes occur.
