Technical diagram view of replacement parts for Genie Pro Series Connected Screw Drive model 3164H.Â
-
Helpful Links
-
Enlarge Image1 – 38240A.S – Power Cord, 4’
     38240B.S – Power Cord, 6’
2 – 36639A.S – Motor Cover Assembly
3 – 39155R.S – Optical Encoder
4 – 38631A.S – Motor Assembly
4A – 086575.0808.S – Screw, #10-32x ½
5 – 39992R.S – Circuit Board Assembly
5A – 27255C04.S – Screw, 6-18x3/8 self tap
6 – N/A – Powerhead Cover
6A – 086575.0808.S – Screw, #10-32x ½
7 – 38425A.S – Light Lens Cover
8 – 37560R.S – Motion detector module
9 – 39732R.S - Wi-Fi Circuit Board
Not Shown - 39613A.S - Harness, Wi-Fi Board
10 - 39993R.S - Mounting Bracket, Wi-Fi Board
11 – Light Socket, come with # 6 Cover
A – 36959A.S – Battery Only, Replacement
B – 36953R.S – Battery Backup Circuit Board
Not Shown – 36747R.S – Cable Assembly, Battery Backup
-
Enlarge Image1 – 38123A.S – Mounting Flange
2 – 36645R.S – Coupler
3 – 37844R.S – Bearing Block Assembly
4 – 37845R.S – Carriage Assembly
5 – 36664R.S – Shuttle Assembly
6 – 37475A.S – Straight Door Arm
7 – 37476A.S – Curved Door Arm
8 – 38159A.S – Screw Drive Mounts (5-piece pack)
9 – 21123F.S – Emergency Release Cord, 7-10’ Models
     21123G.S – Emergency Release Cord, 12-14’ Models
10 – 37107C.S – Carriage Release Handle
11 – 38178R.S – Rail Connector
A – 37047R.S – Mounting Parts Pack, Orange Bag
B – 37048R.S – Installation Parts Bag, Blue Bag
C – Rail Support Kit 12-14’ models
D – 37105R.S – Hanging Hardware, Green Bag
E – 19807A04.S – Retaining Clip
     19806A04.S – Collar
Not Shown –
37714S.S – Wire Clip, 50 Piece
-
View Details
Screw Drive Carriage Assembly- 37845R.S
Regular price $21.99 USDRegular priceUnit price per -
View Details
Screw Drive Shuttle Assembly - 36664R.S
Regular price $26.53 USDRegular priceUnit price per -
View Details
Screw Drive Retaining Clip- 19807A04.S
Regular price $2.49 USDRegular priceUnit price per -
View Details
Screw Drive Connection Collar - 19806A04.S
Regular price $2.49 USDRegular priceUnit price per -
View Details
Screw Drive Coupler Assembly - 36645R.S
Regular price $6.82 USDRegular priceUnit price per -
View Details
Replacement Screw Drive Rail- C-Channel- 38244R.S
Regular price $100.27 USDRegular priceUnit price per -
View Details
Curved Door Arm- 37476A.S
Regular price $6.19 USDRegular priceUnit price per -
View Details
Mounting Parts Pack (Orange Bag) - 37047R.S
Regular price $7.72 USDRegular priceUnit price per -
View Details
Straight Door Arm- 37475A.S
Regular price $6.19 USDRegular priceUnit price per -

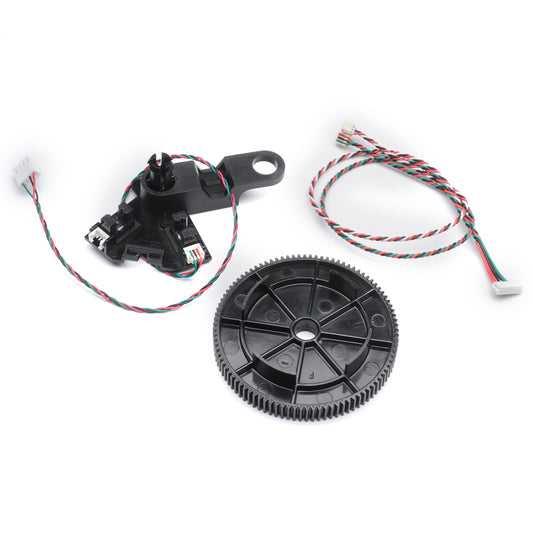

Optical Encoder (RPM Sensor) 39155R.S- DC Screw Drive Models
