Technical diagram showing the replacement parts for model 4124 and 4142, Genie Connected Pro Series belt and chain drive garage door openers.Ā
-
Enlarge Image
1 ā 38240A.S ā Power Cord, 4ā
Ā Ā Ā Ā Ā 38240B.S ā Power Cord, 6ā
3 ā 39360R.S ā Optical Encoder Assembly
4 ā 41014R.S ā Motor Assembly
5 ā 39992S.S ā Main Circuit Board Assembly
5A ā 27255C04.S ā Screw, 6-18 x 3/8 Self Tapping
6 ā 41016S.S ā Powerhead Cover
6A ā 086575.0808.S ā Screw, motor, #10-32 x ½
7 ā 38425A.S ā Light Lens Cover
8 ā 37560R.S ā Motion Detector Module w/ screws

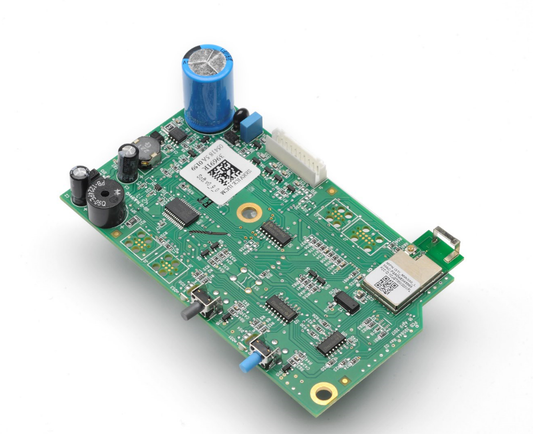

9 ā 39732R.S - Wi-Fi Circuit Board
10 - 39993R.S - Mounting Support Bracket
11 ā (See # 6, light socket is part of the cover)
A ā 36959A.S ā Battery Only Replacement
B ā 36953R.S ā Battery Backup, circuit board
Not Shown ā 36747R.S ā Battery Backup cable assembly
-
Enlarge Image

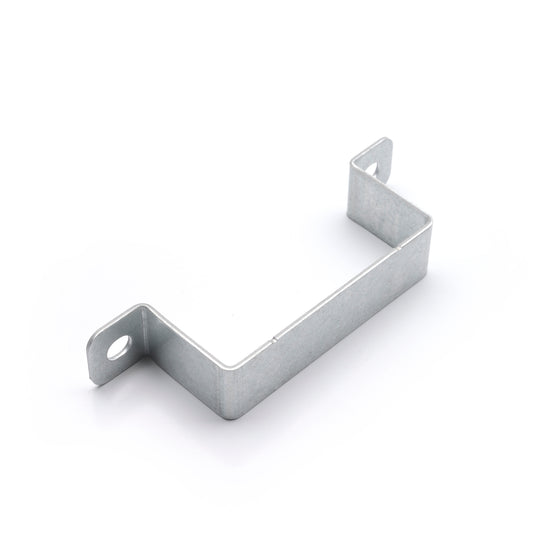

1 ā 36728A.S ā Head to rail bracket

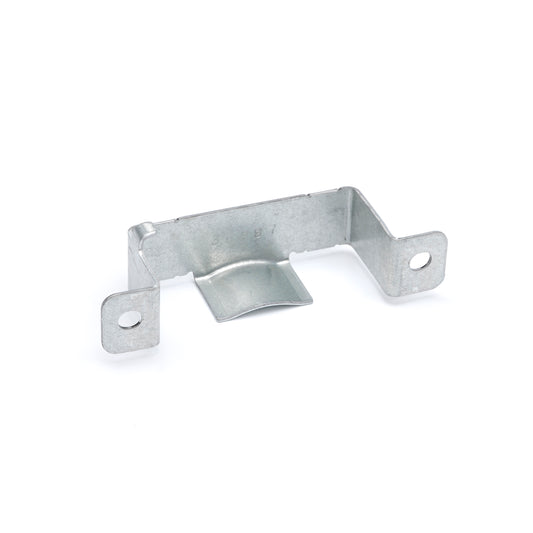

1A ā 36987A.S ā Head to rail bracket belt guard (for belt
only)2 ā 37857R.S ā Tensioner Assembly
3 ā 39591A.S ā Pulley tensioner
4 ā 37557R.S ā Chain bullet assembly
Ā Ā Ā Ā Ā 37556R.S ā Belt bullet assembly
5 ā 37562R.S ā Chain & Bullet assembly, 7 ft
Ā Ā Ā Ā Ā Ā 37562S.S ā Chain & Bullet assembly, 8 ft
Ā Ā Ā Ā Ā Ā 37561R.S ā Belt & Bullet assembly, 7 ft
Ā Ā Ā Ā Ā Ā 37561A.S ā Belt & Bullet assembly, 8 ft
6 ā 37559R.S ā Chain drive sprocket assembly
Ā Ā Ā Ā Ā Ā 37558R.S ā Belt drive sprocket assembly
7 ā 36773R.S ā Carriage assembly, 7 ft doors
Ā Ā Ā Ā Ā 36773S.S ā Carriage assembly, 8 ft doors
Ā Ā Ā Ā Ā 36773T.S ā Carriage assembly, 9,10,12,14 ft doors
8 ā 37107C.S ā Carriage release handle
9 ā 37476A.S ā Curved door arm
10 ā 37049R.S ā Installation parts pack, Blue Bag
11 ā 37047R.S ā Mounting parts pack, Orange Bag

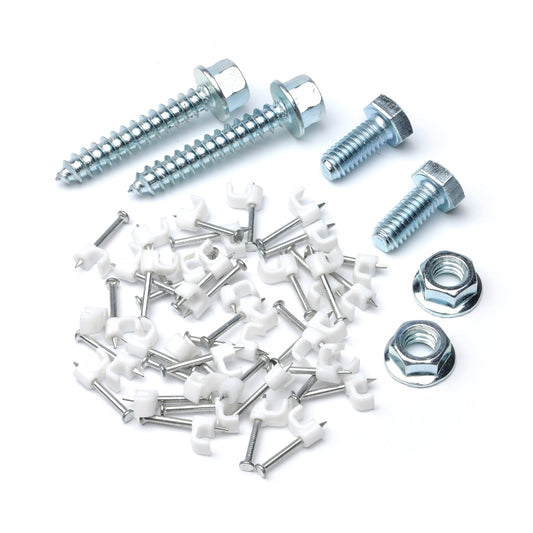

12 ā 37105R.S ā Hanging hardware parts, Green Bag
13 ā 38178R.S ā Rail Connector
14 ā 37561U.S ā Release Cord, 7ā (32ā)
Ā Ā Ā Ā Ā Ā Ā 37561V.S ā Release Cord, 8ā (44ā)
Ā Ā Ā Ā Ā Ā Ā 37561W.S ā Release Cord, 9-14ā (116ā)
Not Shown ā
37714S.S ā Wire Clips (50 pieces)
37301R ā Rail Extender Kit, Chain
37302R ā Rail Extender Kit, Belt
-
View Details
Replacement Belt Drive Rail- C-Channel- 38246R.S
Regular price $111.93 USDRegular priceUnit price per -
View Details
Chain Drive Sprocket- 37559R.S
Regular price $24.48 USDRegular priceUnit price per -
View Details

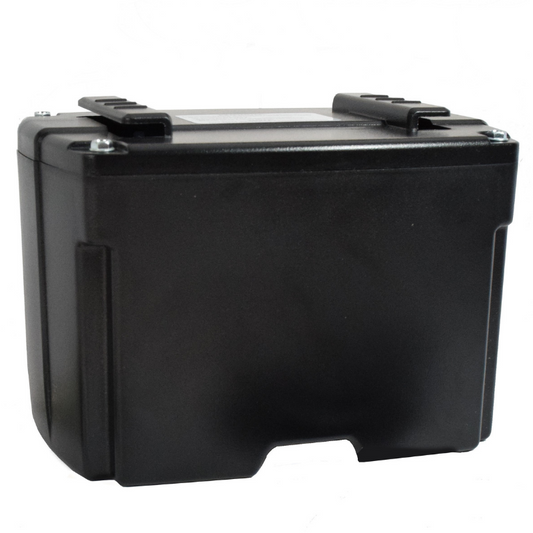

Battery Backup for 140V Motors - 41590R
